Equipped with CUMMINS engine, strong power, high efficiency, energy saving, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different working conditions; stepper motor accurately controls the throttle , Significantly reduce fuel consumption; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.
Equipped with Cummins engine, high load resistance, high horsepower output, high reliability, low fuel consumption, significantly reduce the use and maintenance costs
Advanced negative flow hydraulic system is adopted, which has better system stability and reliability, faster compound action speed and higher operating efficiency.
Flexible maneuvering, a variety of buckets, crusher options, can be widely used in municipal, roads, pipe networks, factories and mining enterprises and other construction sites.
High-strength reinforced box-type side beams and X-shaped middle frames, high-reliability towline wheels and track rollers, can withstand the impact caused by excessive loads.
Low friction and wear-resistant with oil-containing resin gaskets and high-density copper-based sub-lubricated bushings.
Intelligent electronic monitoring system, real-time monitoring, self-diagnostic fault alarm, maintenance information prompts.
Ergonomic driver's compartment, spacious and safe, low noise, better visibility and ventilation.

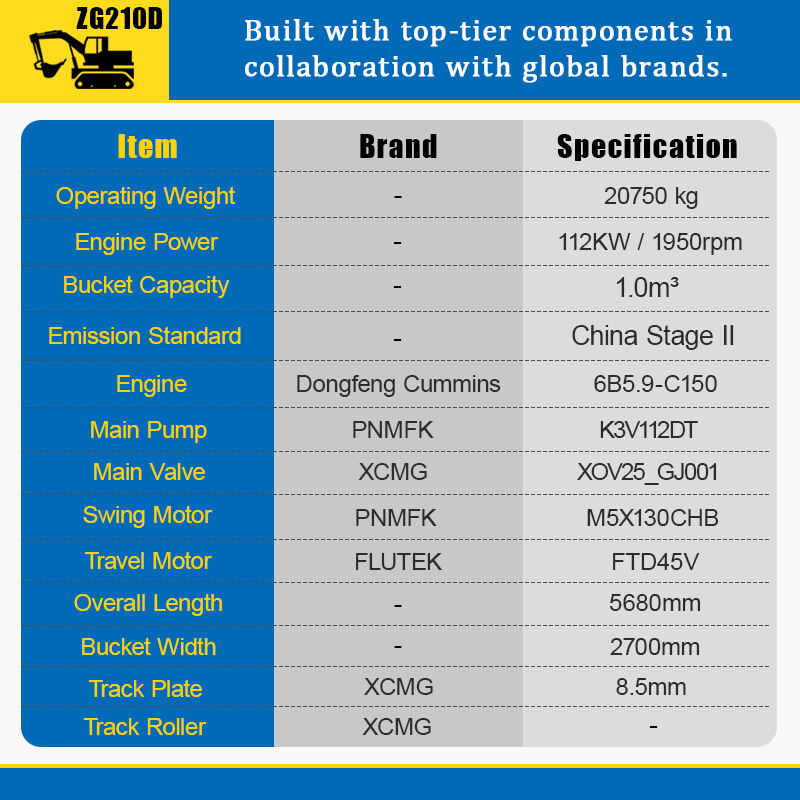

| ITEM | UNIT | Specifications | |
| ZG210D | |||
| Operating weight | kg | 20750 | |
| Rated bucket capacity | m3 | 1.0 | |
| Overall length | A | mm | 9660 |
| Overall width(600mm track shoe) | B | mm | 2800 |
| Overall height | C | mm | 3030 |
| Trunable width | D | mm | 2700 |
| Cabin height | E | mm | 2958 |
| Groundclearance of counterweight | F | mm | 1025 |
| Engine cover height | G | mm | 2338 |
| Min. ground clearance | H | mm | 465 |
| Tail length | I | mm | 2800 |
| Turning radius of turnable | I' | mm | 2800 |
| Wheel base of track shoe | J | mm | 3370 |
| Chassis length | K | mm | 4160 |
| Chassis width | L | mm | 2800 |
| Track shoe gauge | M | mm | 2200 |
| Standard track shoe width | N | mm | 600 |
| Max. traction | kN | 194 | |
| Travelling speed (H/L) | km/hr | 5.7/3.1 | |
| Swing speed | rpm | 11.8 | |
| Gradeability | Degree(%) | 35(70%) | |
| Ground pressure | kgf/cm2 | 0.47 | |
