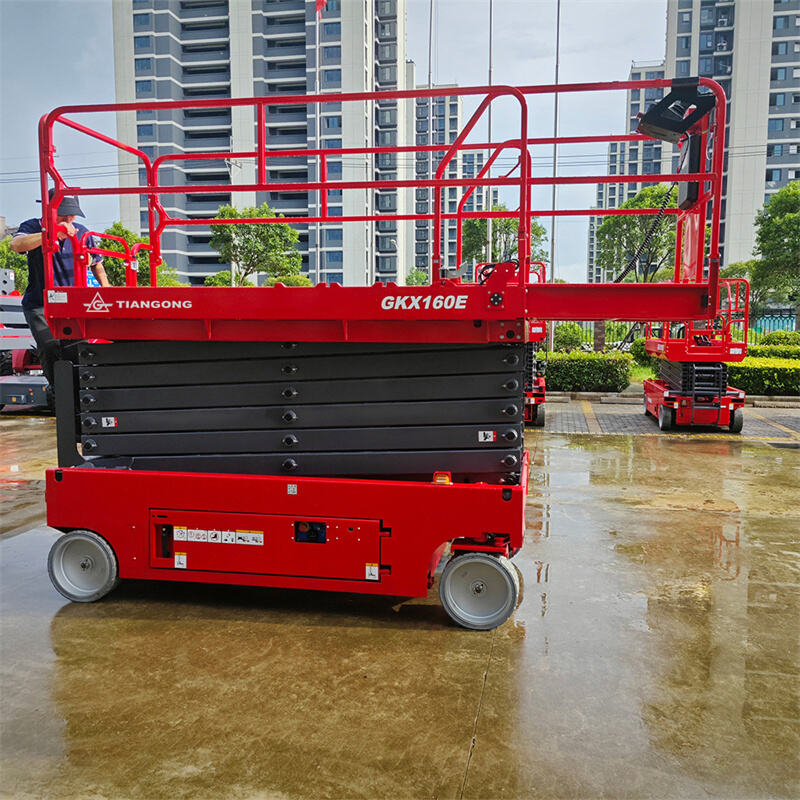

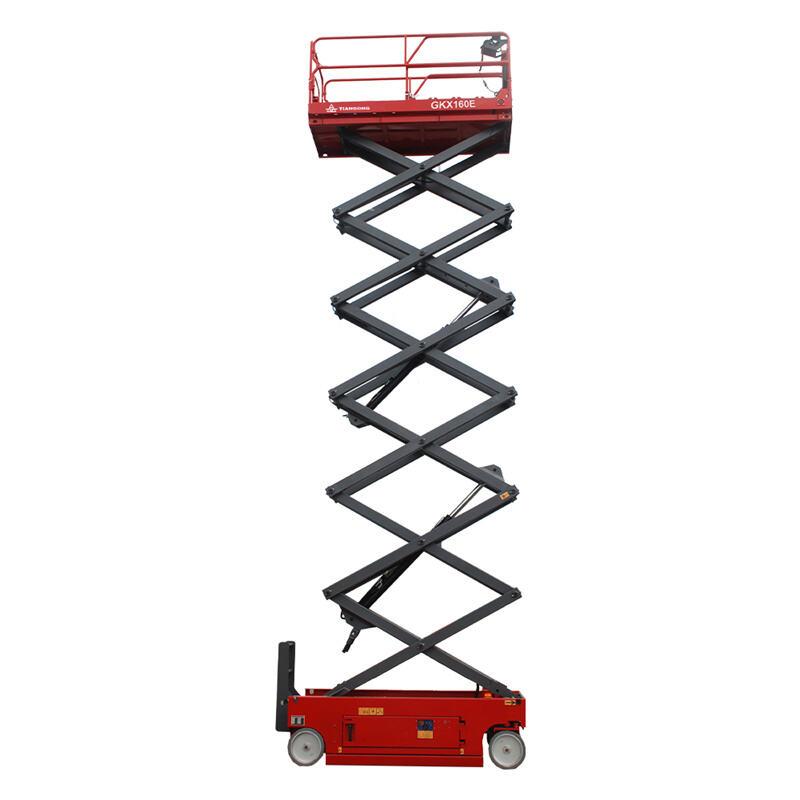

GKX160E Electric Self-Propelled Scissor Lift is a professional aerial work platform complying with GB and CE standards, integrating hydraulic and electric drive technologies with 2WDx2WS (2-wheel drive and 2-wheel steering) configuration . It is designed to meet diverse indoor and outdoor operation needs, such as facility maintenance, decoration, and equipment installation. With a maximum working height of 15.7m and a maximum outreach of 0.9m, it can easily reach high-altitude operation areas, while the platform can be extended from the standard 2.64m to 3.54m, expanding the operation coverage.
1. Excellent Working Height & Space Adaptability
With a maximum working height of 15.7m and a maximum outreach of 0.9m, it easily covers high-altitude operation areas. When stowed, the overall height is only 2.08m and the overall width is 1.25m, allowing flexible movement through indoor passages, elevators, and narrow workspaces. The foldable guardrail design further enhances site passability.
2. Reliable Load-Bearing & Safety Performance
The rated lifting capacity is 250kg, and it can still bear 113kg when the platform is extended. It can accommodate 2 operators working simultaneously indoors, meeting the needs of multi-person collaborative operations. Equipped with a tilt sensor with 3° front-to-back and 1.5° side-to-side detection, it monitors the equipment's posture in real time to effectively prevent rollover risks.
3. Efficient & Flexible Operation Experience
The lifting time is only 70s and the lowering time is 45s, enabling quick height adjustment and reducing operation waiting time. The 381*127mm solid tires have good ground adaptability, and the 25% gradeability can handle slightly sloped sites. The inner and outer turning radii are 0m and 2.75m respectively, ensuring flexible turning and low operation difficulty.
5. Durable Power & System Configuration
Optional 235Ah lead-acid or lithium battery, 24V system voltage and control voltage maintain stable output, compatible with 96-265V wide-voltage input charger, making charging convenient and highly compatible. The 23L hydraulic oil tank matches the 21Mpa hydraulic system pressure, ensuring stable and powerful lifting actions and reducing the probability of system failures.
DIMENSION
| A Max.Platform Height | 13.7m |
| Min.platform height | 1.45m |
| Max.Working Height | 15.7m |
| B Max. Outreach | 0.9m |
| C Overall Length | 2.84m |
| D Overall Width | 1.25m |
| Overall Height (guardrails folded) | 2.08m |
| E Overall Height (guardrails unfolded) | 2.68m |
| F Wheelbase | 2.21m |
| Ground Clearance-Pothole protection board ground Clearance(up) | 0.15m |
| Ground clearance-Pothole protection board ground Clearance(down) | 0.019m |
| Platform Size(LxWx H) | 2.64m*1.12m*1.1m |
| Length-Platform Extended | 3.54m |
| Overall Length -Platform Extended | 3.75m |
| Skirting Board Height | 0.15m |
PERFORMANCE
| Lifting Capacity | 250kg |
| Lifting Capacity (extended platform) | 113kg |
| Max.Load number (Indoor/Outdoor) | 2/0 |
| Drive Speed (Stowed) | 3.2km/h |
| Drive Speed(Raised) | 0.7km/h |
| Rising Time | 70s |
| Lowering Time | 45s |
| Gradeability(2wD) | 25% |
| Tilt Sensor-Front to Back/ Side to Side | 3°/1.5° |
| Turing Radius-inside/ outside | 0m/2.75m |
| Max.Lateral Force (indoor/outdoor) | 400N/O |
| Max.Wind Speed | 0 |
| Tire Specificationy Type | 381*127mm Solid Tires |
POWER
| Drive mode | Hydraulic/ Electric Drive,2WDx2WS |
| Power Unit Motor(voltage/power) | 24V/3.3kW |
| Hydraulic Tank Capacity | 23L |
| Hydraulic system pressure | 21Mpa |
| Battery specifications (lead-acid battery/lithium battery) | 235Ah |
| System Voltage | 24V |
| Control Voltage | 24V |
| Charger (Input Voltage/Output Current) | 96-265V/30A |
WEIGHT
| Weight-ANSI/CSA Standard | / |
| Weight-CE/AUS Standard | 3345kg |
| Standard | GB/CE |
