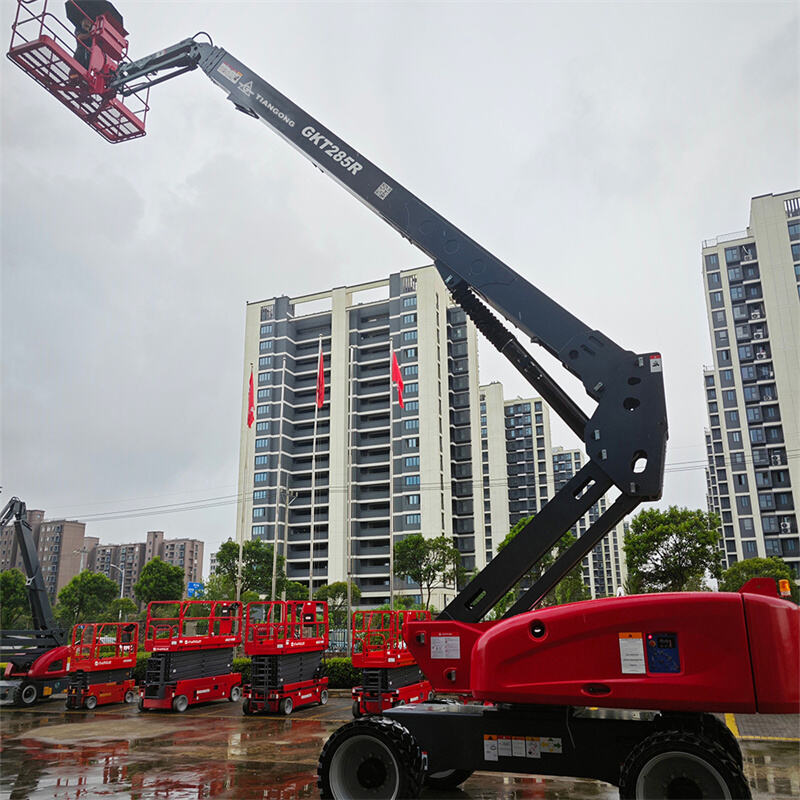

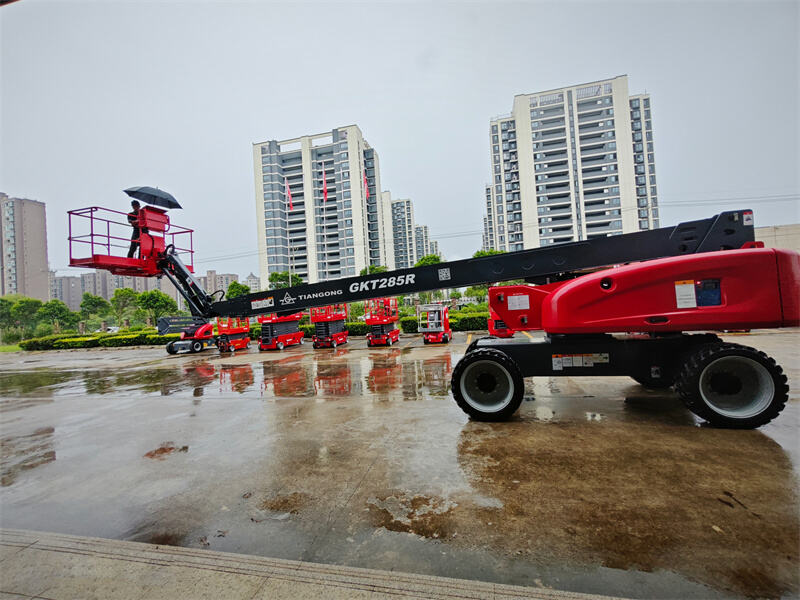

The Aerial Work Platform is a safe, flexible, and efficient solution for aerial operations. With its electric self-propelled design, it moves and operates easily in complex environments, making it ideal for construction, equipment maintenance, municipal projects, and warehouse logistics.
1. Superior Working Height
Max working height up to 28.5m, platform height 26.5m, designed for challenging aerial tasks.
2. Strong Load Capacity
Maximum load capacity 454kg, accommodating 2–3 workers with tools for improved efficiency.
3. Flexible Operation
Featuring 360°continuous rotation and 180°platform swing, combined with powerful drive system for maximum flexibility.
4. Safe & Stable
With 45% gradeability, wind resistance up to 12.5m/s, foam-filled tires, and load-sensing hydraulic system for superior safety.
5. Eco-Friendly Power
Equipped with Euro V / Stage IV compliant engines, delivering eco-friendly performance.
DIMENSION
| Max.Working Height | 28.5m |
| Max. Platform Height | 26.5m |
| Max.Outreach | 21m |
| Maximum horizontal work amplitude | 21.6m |
| A Length(stowed) | 12.05m |
| B Width (stowed) | 2.5m |
| C Height(stowed) | 2.8m |
| D Wheelbase | 3.0m |
| Ground Clearance | 0.44m |
| Platform Size | 2.44*0.9*1.1m |
PERFORMANCE
| Lift Capacity(Restricted/Unrestricted) | 454/300kg |
| Max.Load number(Restricted/Unrestricted) | 3pers/2pers |
| Drive Speed (Stowed) | 5.1km/h |
| Drive Speed(Raised) | 1.1km/h |
| Gradeability(4WD) | 45% |
| Turntable Rotation (Angle/Continuity) | 360°continuous |
| Platform Rotation | 180° |
| Max.Tilt Angle(front to back/side to side) | 5°/3° |
| Turing Radius (Inside/Outside) | 3.6/6.88m |
| Turntable Tailswing | 1.8m |
| Max.Lateral Force (Restricted/Unrestricted) | 400N |
| Max.Wind Speed | 12.5m/s |
| Tire Specification/ Type | 355/55D625(foam filled tire) |
POWER
| Drive wheels number x Steering wheels number | 4x2 |
| Engine (power/speed/specification/brand) | Deutz TD2.9L4,55,4kW Euro 5 emission standardWechai WP2.3NG75E441,55.4kW StatelV |
| Hydraulic Tank Capacity | 180L |
| Diesel Fuel Tank Capacity | 130L |
WEIGHT
| Weight | 17110kg |
