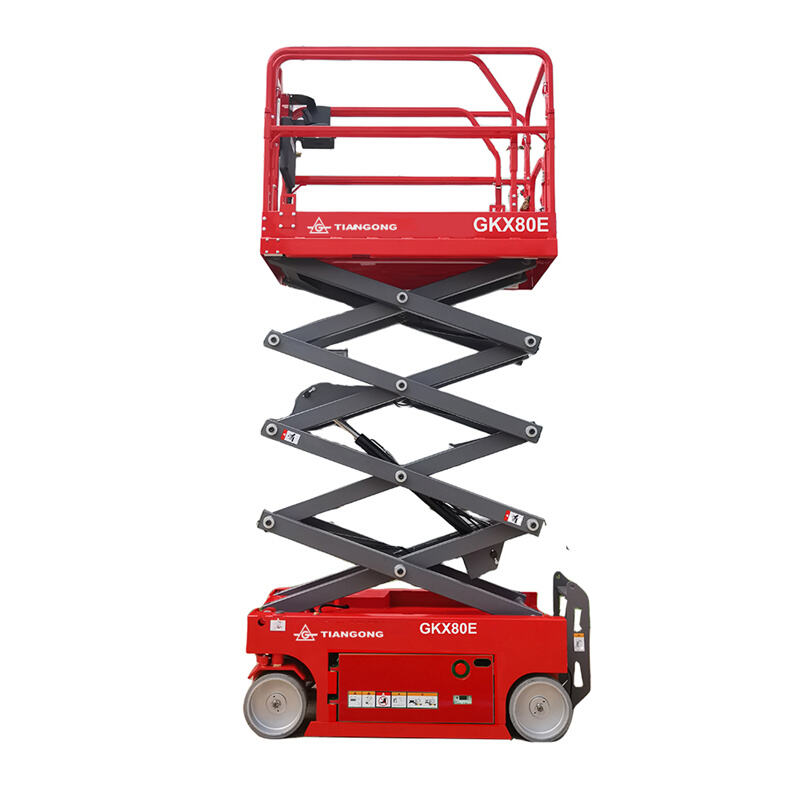

Our Aerial Work Platform (AWP) is a mobile lifting machine engineered to elevate personnel, materials, or tools safely and efficiently into the air. Unlike fixed scaffolding or ladders, AWPs deliver superior flexibility, reliability, and performance for elevated tasks.The GKX80E electric self-propelled scissor lift is designed for both indoor and outdoor aerial work. With a platform height of 8m and a maximum working height of 10m, it delivers safe and efficient performance. Its compact width of only 0.81m allows easy access through elevators, narrow aisles, and indoor spaces, making it ideal for factories, warehouses, shopping malls, and construction sites.
1. Outstanding Performance
Maximum load capacity of 230kg, supporting two operators with tools; even with the extended platform, it maintains 120kg capacity.
2. Flexible Mobility
Small turning radius with solid tires for various ground conditions; maximum travel speed of 3.2km/h for improved efficiency.
3. Safety Features
Equipped with front/rear and side tilt sensors, wind speed monitoring, and pothole protection to ensure operator safety at height.
4. Smart Electric Drive
Powered by a 24V/3.3kW motor, with large-capacity batteries for long operation hours and a wide-voltage automatic charger.
5. Easy Maintenance
Foldable guardrails for convenient transport, dual-door design for easy servicing and maintenance, reducing operating costs.
DIMENSION
| A Max. Platform HeightMax. | 8m |
| Working Height | 10m |
| B Max.Outreach | 1m |
| C Overall Length | 2.48m |
| D Overall Width | 0.81m |
| Overall Height (guardrails folded) | 1.82m |
| E Overall Height (guardrails unfolded) | 2.37m |
| F Wheelbase | 1.85m |
| Ground Clearance | 0.1m |
| Pothole protection board ground Clearance(down) | 0.024m |
| Platform Size(LxWxH) | 2.25m*0.8m*1.25m |
| Length -Platform Extended | 3.25m |
| Skirting Board Height | 0.15m |
PERFORMANCE
| Lifting Capacity | 230kg |
| Lifting Capacity (extended platform) | 120kg |
| Max.Load number (indoor/outdoor) | 2pers/1per |
| Drive Speed (Stowed) | 3.2km/h |
| Drive Speed (Raised) | 0.7km/h |
| Rising Time (empty load) | 35s |
| Lowering Time (empty load) | 17s |
| Gradeability(2wD) | 25% |
| Tilt Sensor-Front to Back/Side to Side | 3°/1.5° |
| Turing Radius-inside/outside | 0/2.18m |
| Max.Lateral Force (indoor/outdoor) | 400N/200N |
| Max.Wind Speed | 12.5m/s |
| Tire Specification/Type | 381*127mm Solid Tires |
POWER
| Drive Mode | Hydraulic/Electric Drive,2WDx2WS |
| Power Unit Motor (voltage/power) | 24V/3.3kW |
| Hydraulic Tank Capacity | 8L |
| Hydraulic system pressure | 21Mpa |
| Battery specifications (lead-acid battery/lithium battery) | 235Ah |
| System Voltage | 24V |
| Control Voltage | 24V |
| Charger (input Voltage/Output Current) | 90-264V/30A |
WEIGHT
| Weight | 1542kg |
| Standard | GB/CE |
