Cummins EFI engine (conforming to Ⅲ-stage emission regulations), powerful, energy efficient, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different work; reliable and accurate fuel injection system, real-time control of fuel injection, making combustion more complete, fuel efficiency; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.
Cummins high-powered engine with strong power, low fuel consumption and high reliability;
New hydraulic system is equipped with new Kawasaki main valve, the internal spool is improved, the flow rate is increased, the pressure loss is reduced, the flow distribution is more reasonable, and the compound action is more harmonious and soft;
New generation control system intelligently adjusts the hydraulic absorption power according to the working conditions, and optimizes the system matching to ensure the full performance of the whole machine;
Equipped with high-resolution, high-brightness 8-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions;
Safe and reliable new cab with automatic air conditioning
| ITEM | UNIT | Technical specifications | |

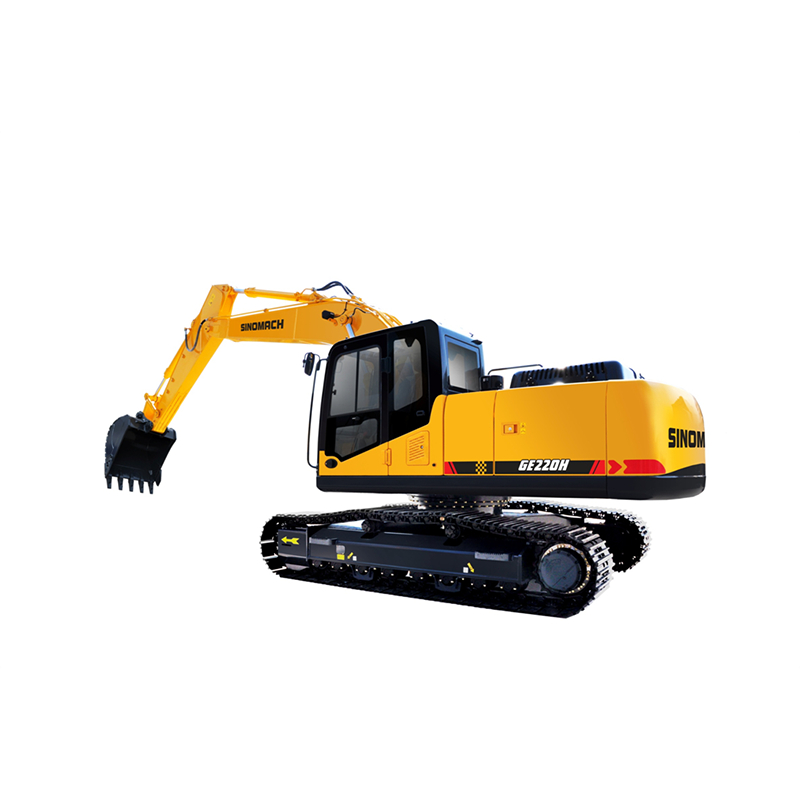

| GE220H | |||
| Operating weight | Kg | 22300 | |
| Rated bucket capacity | M³ | 1.1 | |
| Length | A | Mm | 9600 |
| Width (600mm track) | B | Mm | 2980 |
| Height | C | mm | 3045 |
| Turntable width | D | mm | 2745 |
| Height of cabin | E | mm | 2990 |
| Ground clearance of counterweight | F | mm | 1046 |
| Engine cover height | G | mm | 2408 |
| Min. ground clearance | H | mm | 486 |
| Tail length | I | mm | 2835 |
| Turning radius of turntable | I' | mm | 2835 |
| Wheel base of track shoe | J | mm | 3460 |
| Length of chassis | K | mm | 4250 |
| Width of chassis | L | mm | 2980 |
| Track shoe gauge | M | mm | 2380 |
| Standard track width | N | mm | 600 |
| Max. traction | kN | 195 | |
| Traveling speed (H/L) | Km/h | 5.2/3.5 | |
| Swing speed | rpm | 13.2 | |
| Gradeability | ° | 35(70%) | |
| Ground pressure | Kgf/cm | 0.49 | |
