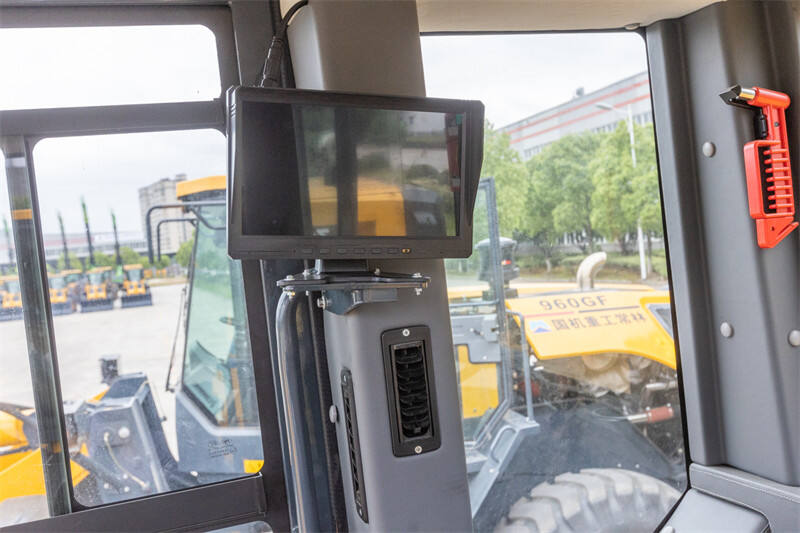

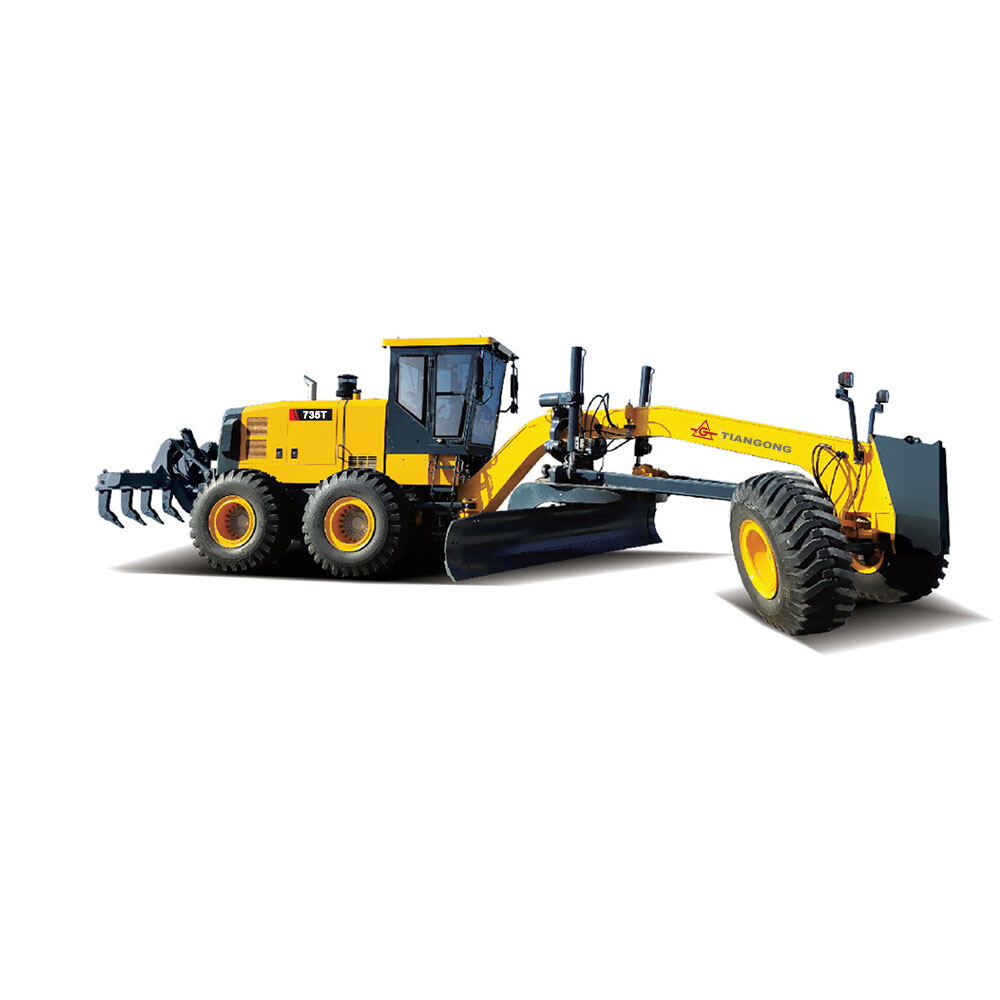

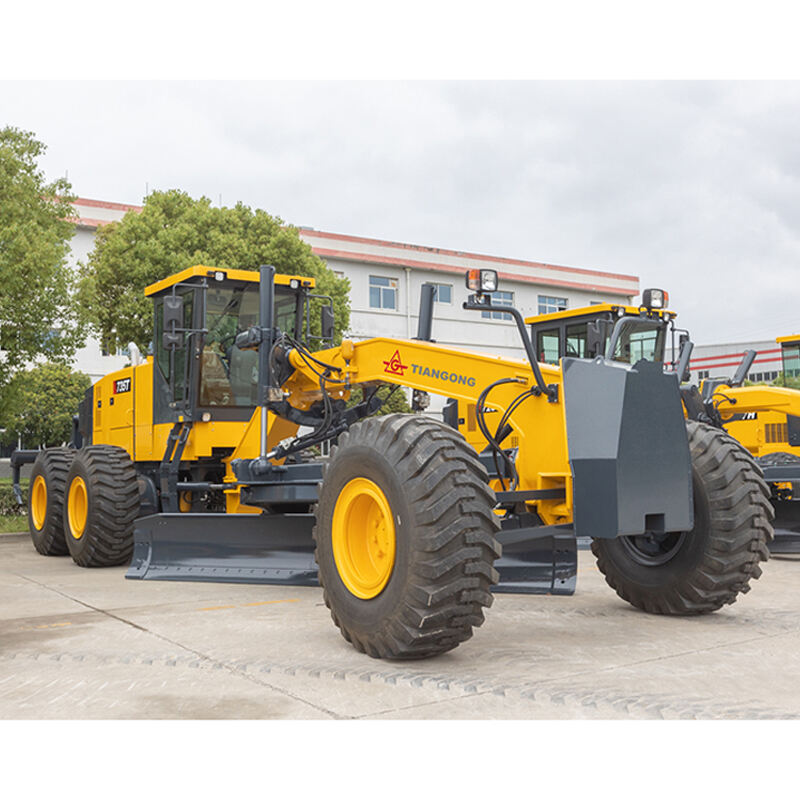

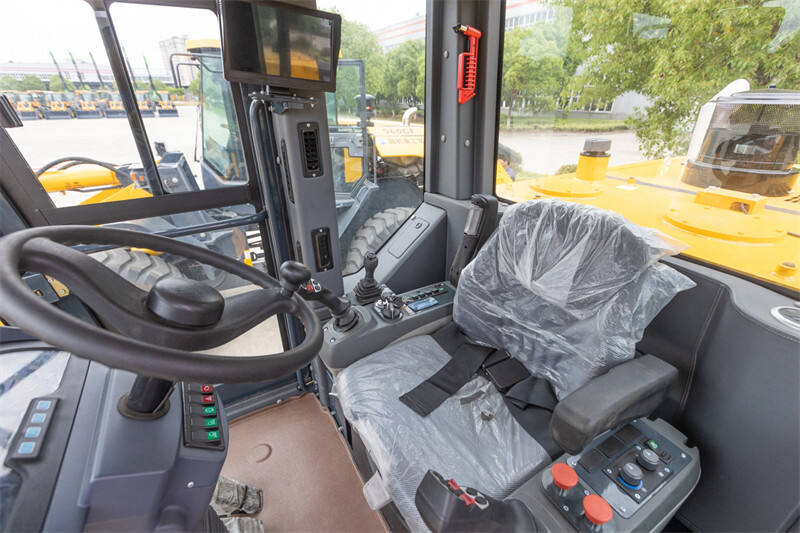

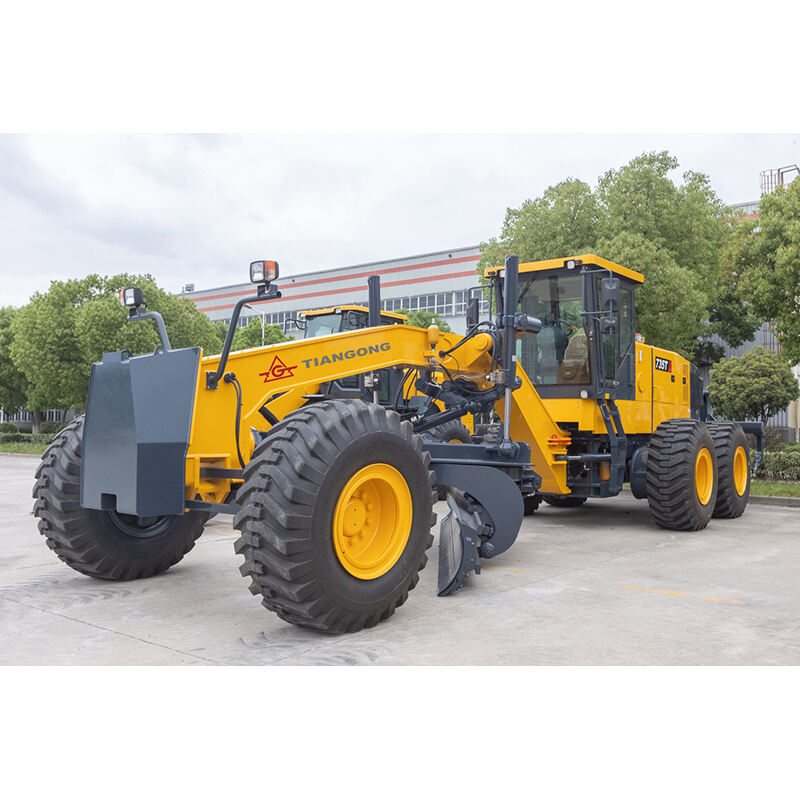

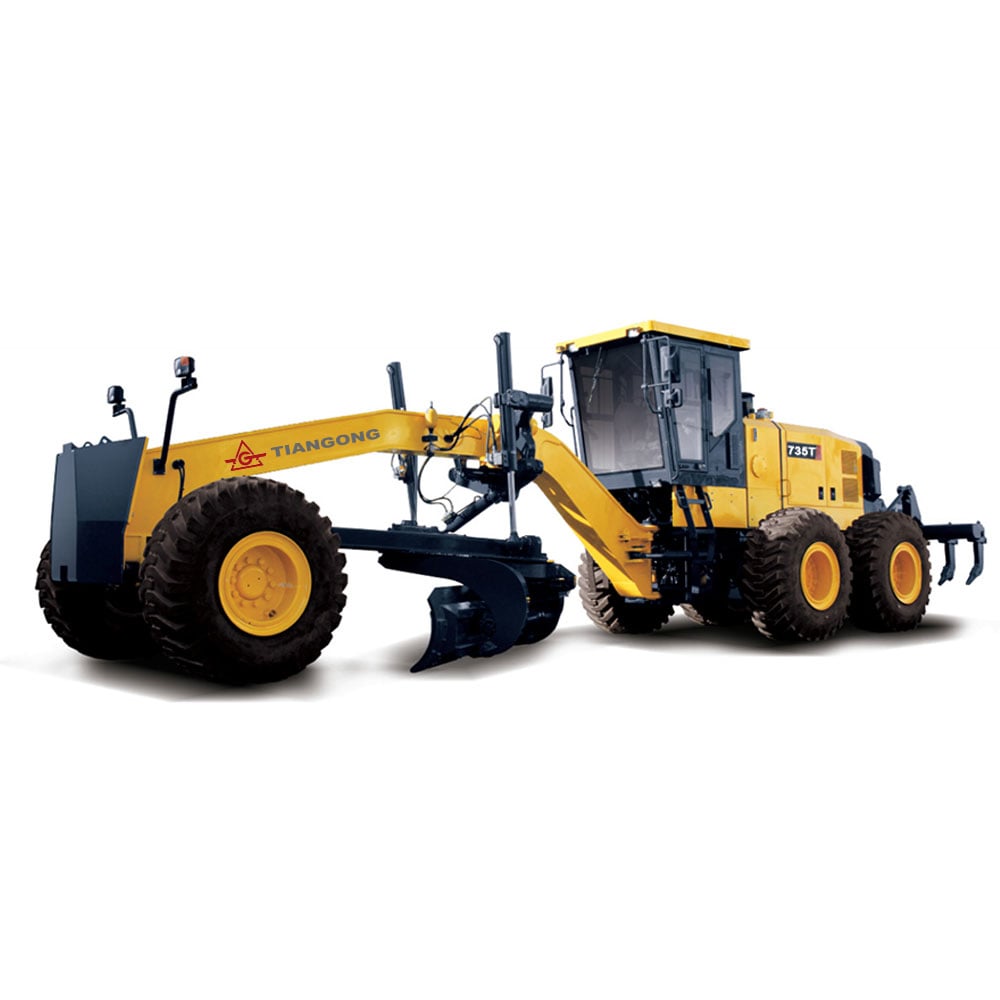

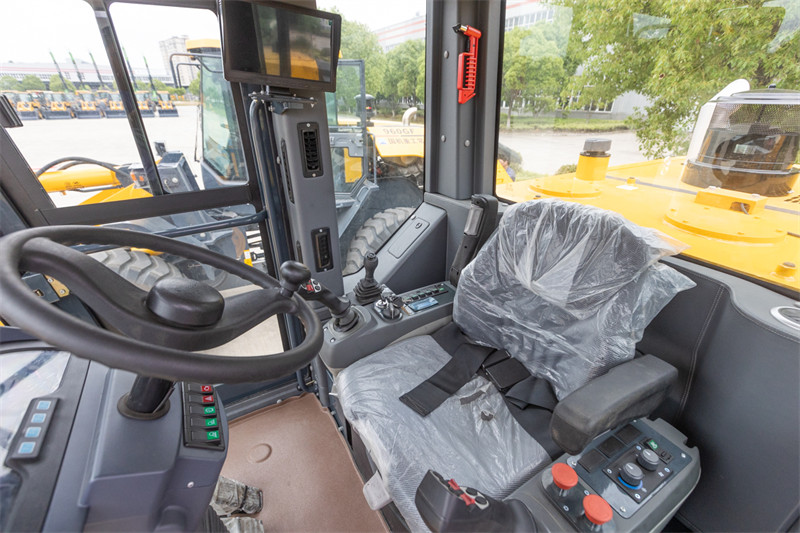

735T is a heavy-duty motor grader tailored for mining scenarios, with an operating weight of 28,000Kg (when equipped with a ripper) and a rated power of 268kW@2100rpm. It adopts a Cummins QSM11-C360 electronically controlled engine and a ZF electro-hydraulic power-shift transmission, paired with a load-sensing hydraulic system. Its high-strength structure, full-floating rear axle with NO-SPIN differential, and full hydraulic dual-circuit wet braking system ensure stability under heavy loads, while the 4920mm-wide moldboard and optional attachments adapt to mining site leveling needs. The spacious cabin with heating and cooling air conditioning adds operator comfort, making it suitable for harsh mining environments.
1. Equipped with reliable Cummins QSM11-C360 engine

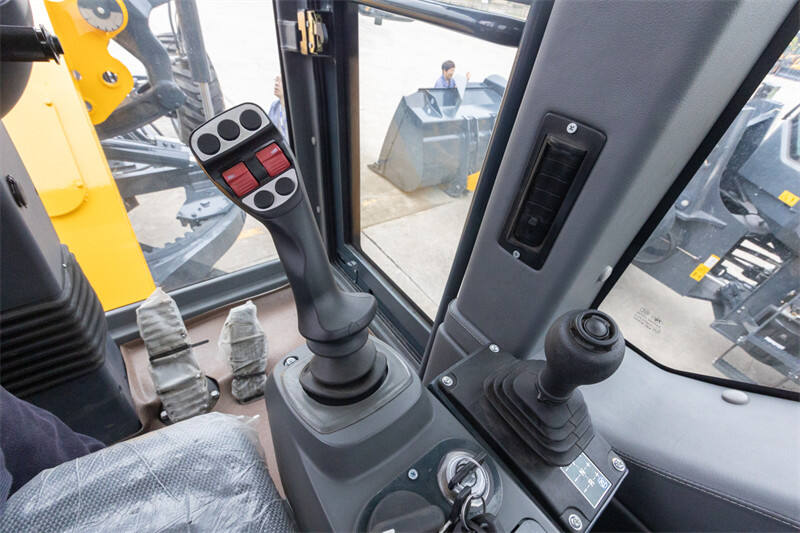

2. Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3reverse shifts makes operation easy and convenient
3. Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
4. Ideal axel load allocation provides excellent stability while cutting hard surface
5. Serviceable, efficient hydraulic system enables every part to be fully used
6. Box-typed frame and advanced T/M enable it to complete heavy-duty work

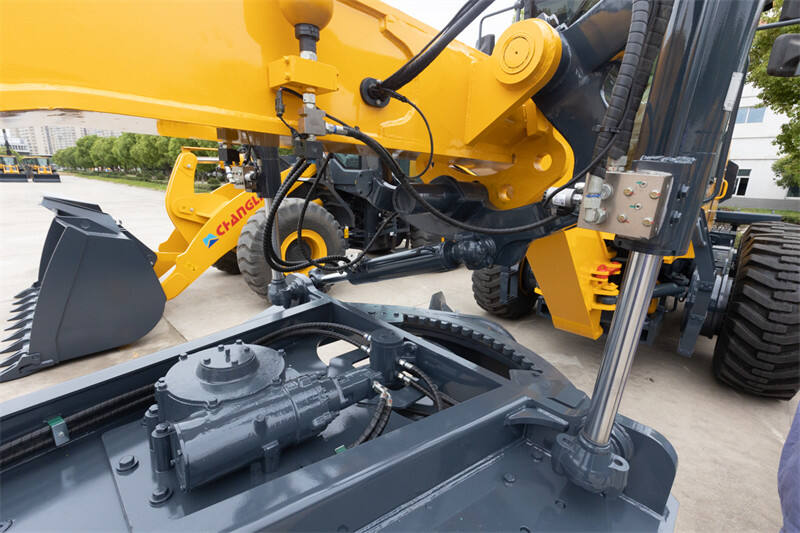

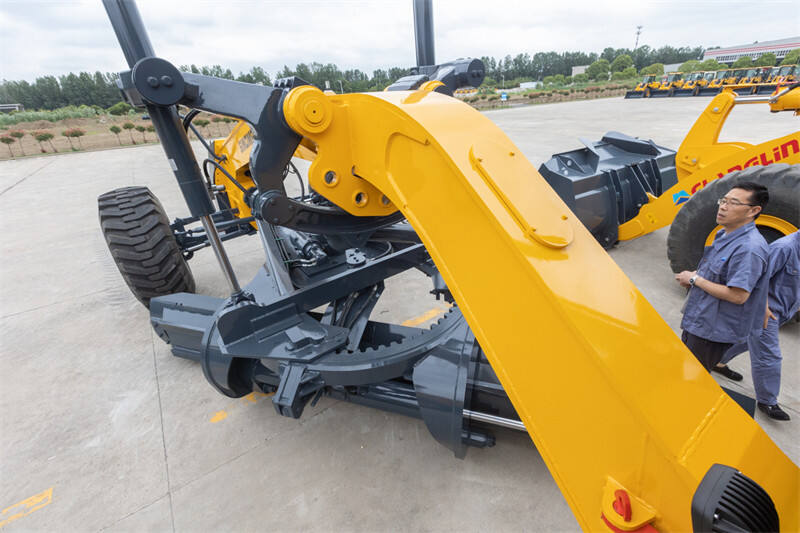

7. A wide working range is accomplished through flexible blade suspension system and articulated frame
| Overall Dimension | ||||||||
| 1 | Length | 12500mm | ||||||
| 2 | Width | 3300mm | ||||||
| 3 | Height(To the top of the cab) | 3700mm | ||||||
| 4 | Wheel base | 7760mm | ||||||
| 5 | Tread | 2650mm | ||||||
| 6 | Min. turning radius | 9000mm | ||||||
| Main Technical Specification | ||||||||
| 1 | Operating weight | 28000kg | ||||||

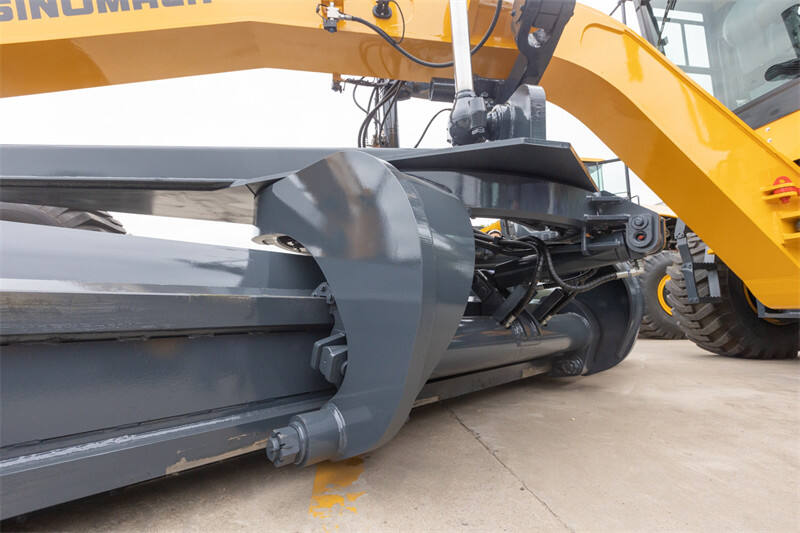

| 2 | Blade length | 4920mm | ||||||
| 3 | Blade height | 695mm | ||||||
| 4 | Blade width | 25mm | ||||||
| 5 | Max. lift above ground | 515mm | ||||||
| 6 | Max. grading depth | 735mm | ||||||
| 7 | Max. shoulder reach outside rear tire | 2260mm(L)/1950mm(R) | ||||||
| 8 | Traveling speed(Km/h),6 forward and 3 reverse | |||||||
| (1) forward | 5.4/8.2/12.7/19.3/27.5/41 km/h | |||||||
| (2) reverse | 5.4/12.7/27.5 km/h | |||||||
| Diesel engine | ||||||||
| 1 | Model | Cummins QSM11-C360 | ||||||
| 2 | Type | EFI,turbocharger, air-to-aircooling, temperature control independent cooling system | ||||||
| 3 | Rated output | 268(kW) | ||||||
| 4 | Rated speed | 2100(r/min) | ||||||
| 5 | Max. Torque | 1830(N.m)/(1400r/min) | ||||||
| Transmission case | ||||||||
| 1 | Model | 6WG310 (ZF technology) | ||||||
| 2 | Type | electro-hydraulic controlled power shift single handle operation,automatic transmission | ||||||
| 3 | Gear shift position | 6 Forward and 3 reverse gears | ||||||
| Axle and Tire | ||||||||
| 1 | Max.drawing force | 144kN | ||||||
| 2 | Size of tire | 18.00-25-28PR | ||||||
| Working Device Hydraulic System | ||||||||
| 1 | Model of oil pump | FRR074BLS2520-3S1N2A1 | ||||||
| 2 | System pressure | 25MPa | ||||||
| 3 | Model of distribution valve | Walvoil DRFC22132 DPX100/5Walvoil DRFC22133 DPX100/5 | ||||||
| 4 | Model of oil motor | Eaton 604-1113 | ||||||
| Steering System | ||||||||
| 1 | Type | ForeTiredeflexion | ||||||
| 2 | Model of steering gear | Eaton Xcel45-320 | ||||||
| 3 | System pressure | 16MPa | ||||||
| Brake System | ||||||||
| 1 | Type of traveling brake | Full Hydraulic Wet Brakes | ||||||
| 2 | Model of brake pump | HPT2-35/HPT1-20/9 | ||||||
| 3 | System pressure | 6.9MPa | ||||||
| 4 | Type of parking brake | Hydraulically Operated Disc Brake | ||||||
| Oil Capacity | ||||||||
| 1 | Fuel(diesel) | 540L | ||||||
| 2 | Engine lubricating oil | 28L | ||||||
| 3 | Oil for converter and gear box | 35-40L | ||||||
| 4 | Oil for hydraulic system | 200L | ||||||
| 5 | Oil for driving rear axles | 35L | ||||||
| 6 | Tandem box | 2*60L | ||||||
