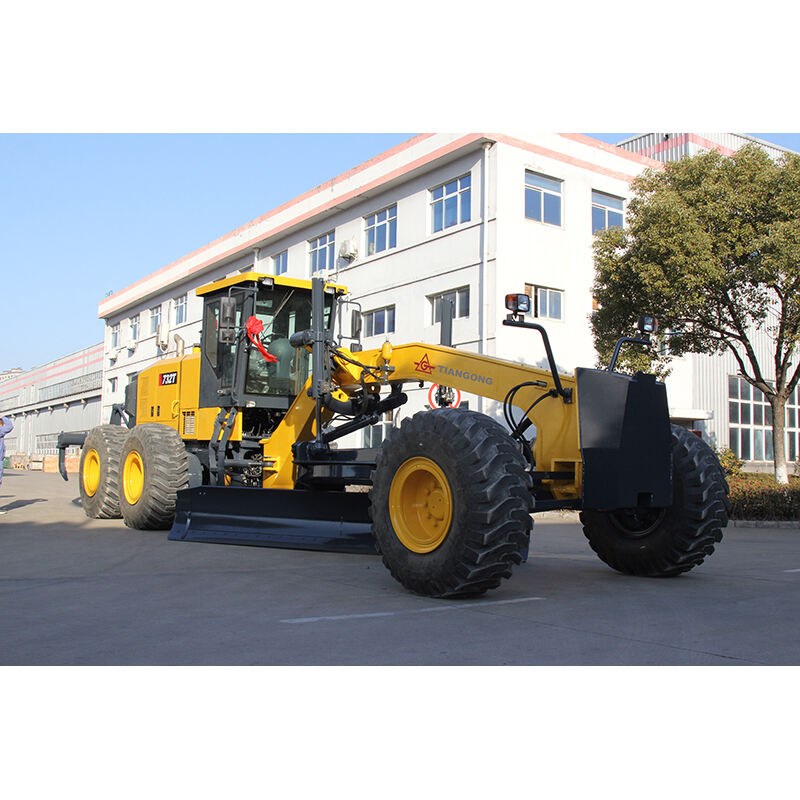

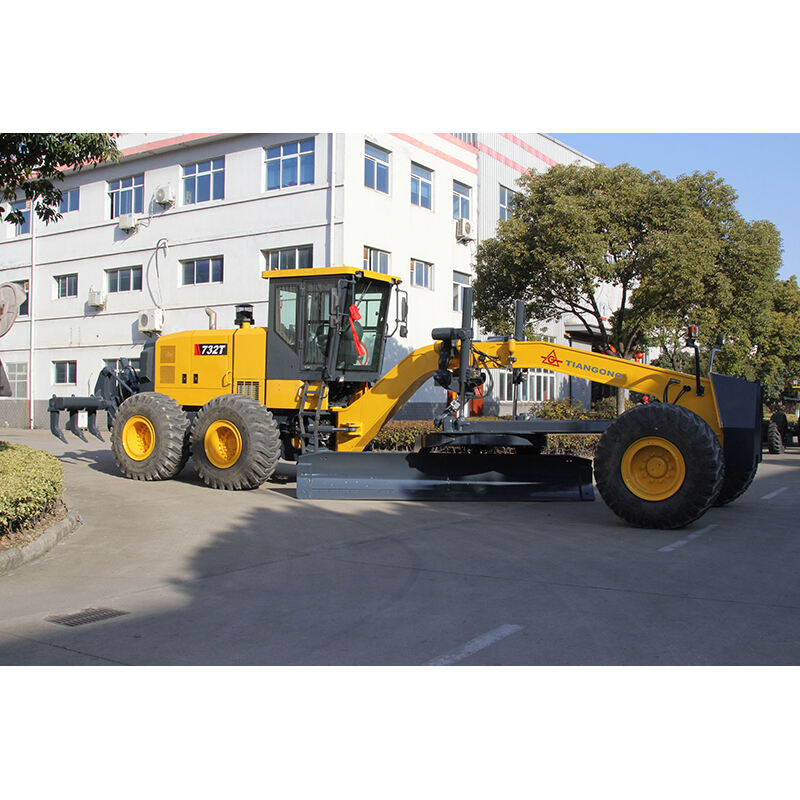

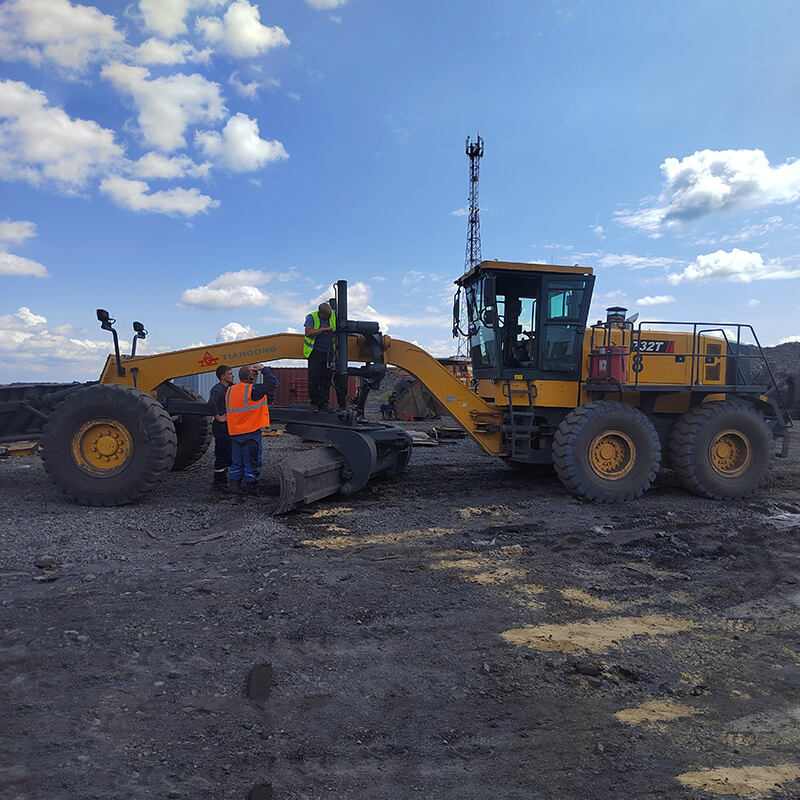

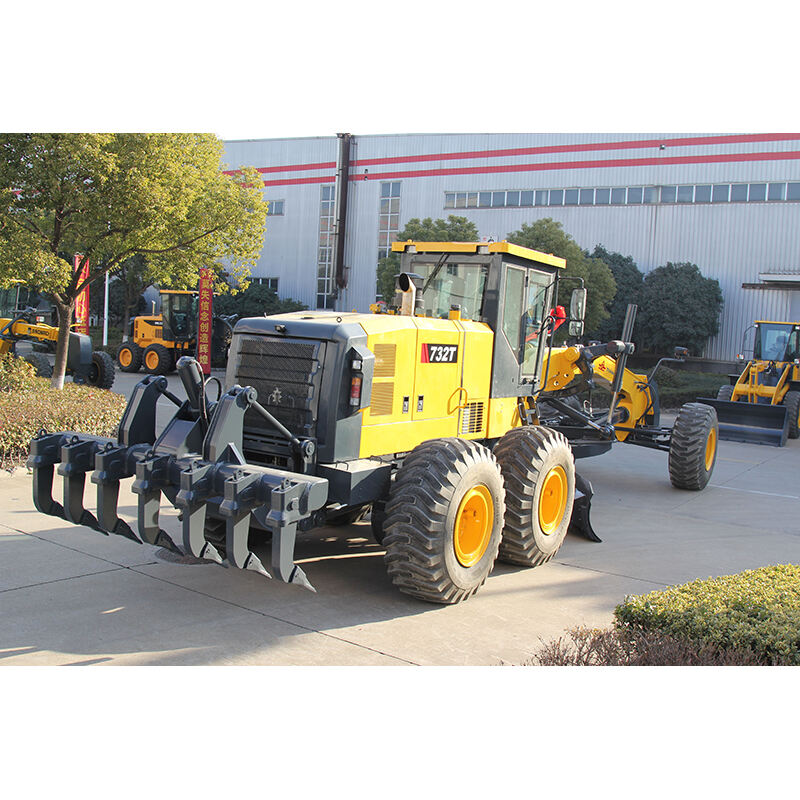

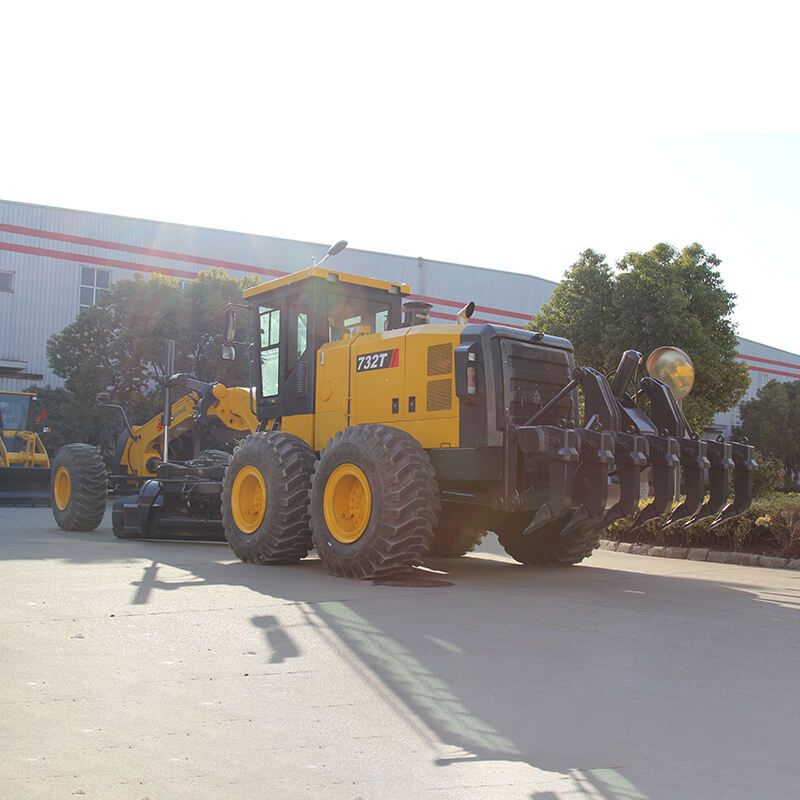

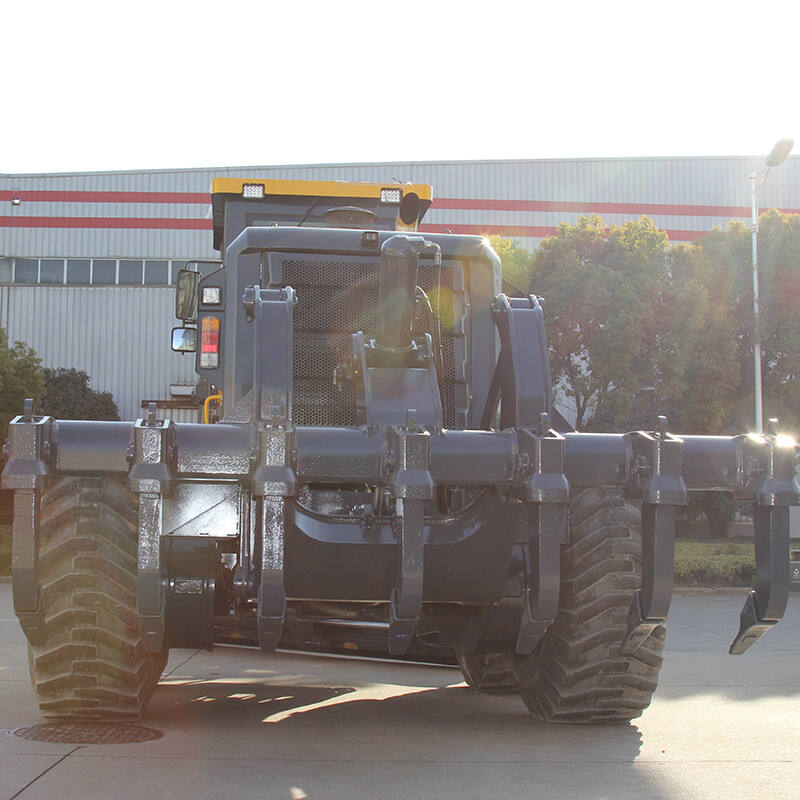

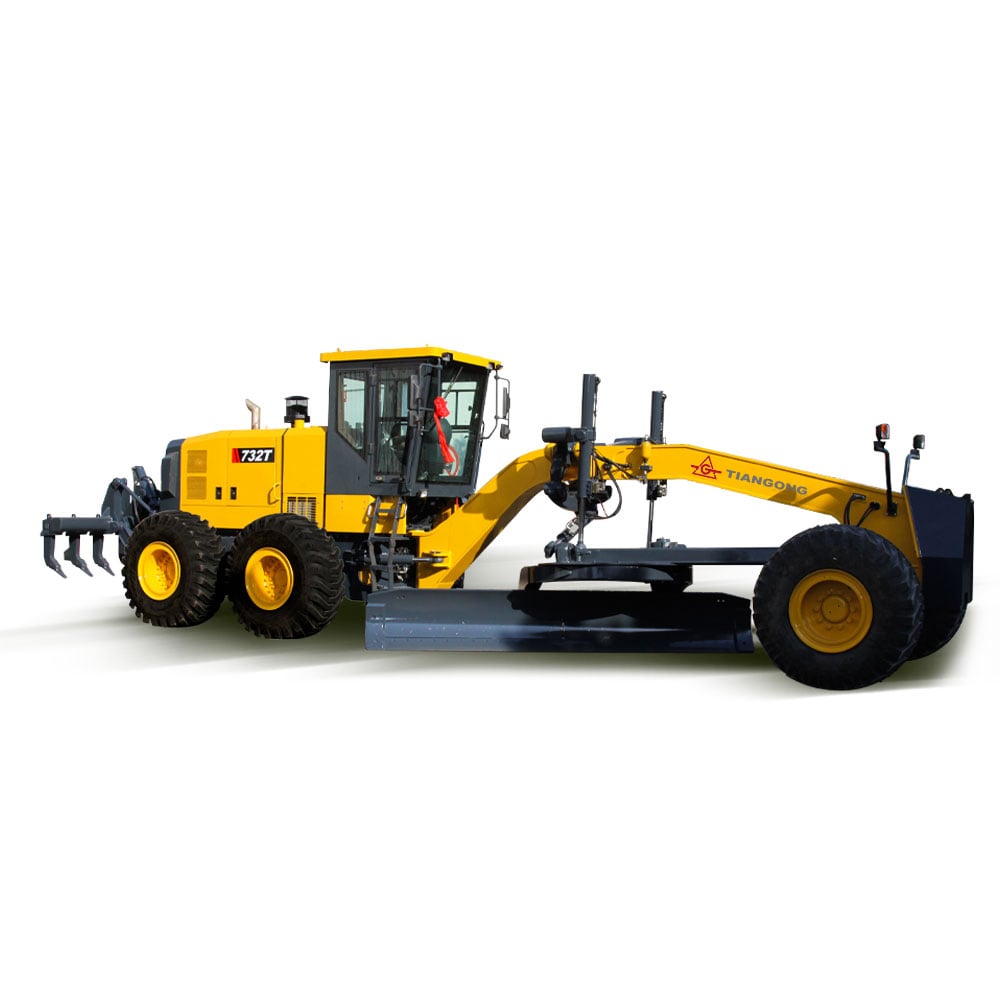

732T Motor Grader is a high-performance heavy-duty equipment tailored for demanding operations such as mine site finishing, road construction, and large-scale earthwork, with an operating weight of 28,000Kg (when equipped with a ripper) and a rated power of 246kW@2100rpm. Powered by the reliable Cummins QSM11-C330 engine, it integrates robust structural design with intelligent control systems. Adopting a single-handle electro-hydraulic controlled power-shift transmission (T/M) with 6 forward and 3 reverse shifts, it ensures effortless operation. Complemented by a load-sensitive hydraulic system, box-typed frame, and flexible working devices, the 732T delivers exceptional stability, traction, and efficiency, making it the ideal choice for heavy-load and harsh-environment tasks.
· Equipped with reliable Cummins QSM11-C330 engine

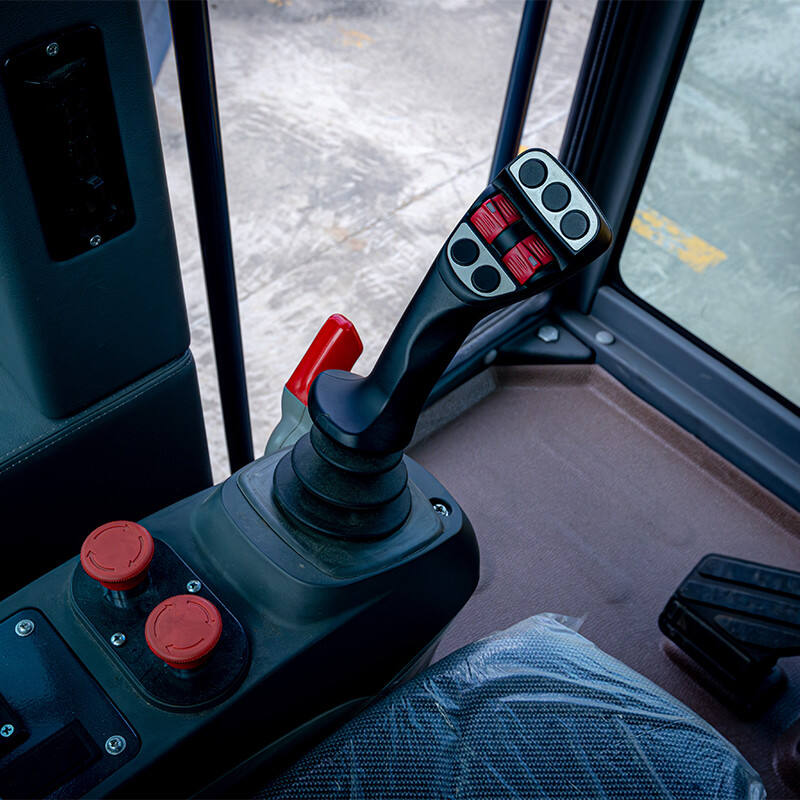

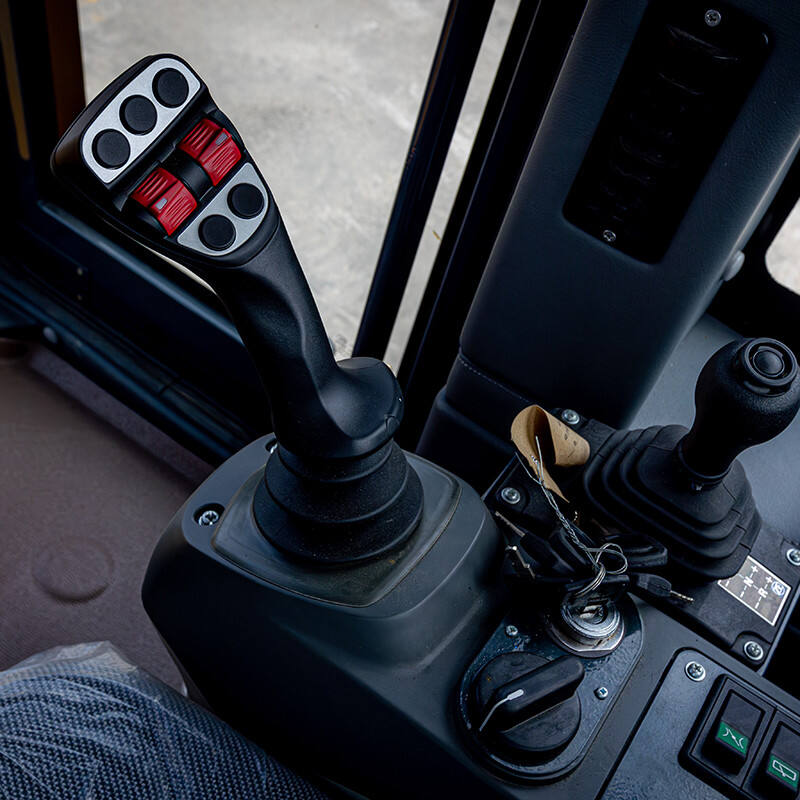

· Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3reverse shifts makes operation easy and convenient
· Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
· Ideal axel load allocation provides excellent stability while cutting hard surface
· Serviceable, efficient hydraulic system enables every part to be fully used
· Box-typed frame and advanced T/M enable it to complete heavy-duty work

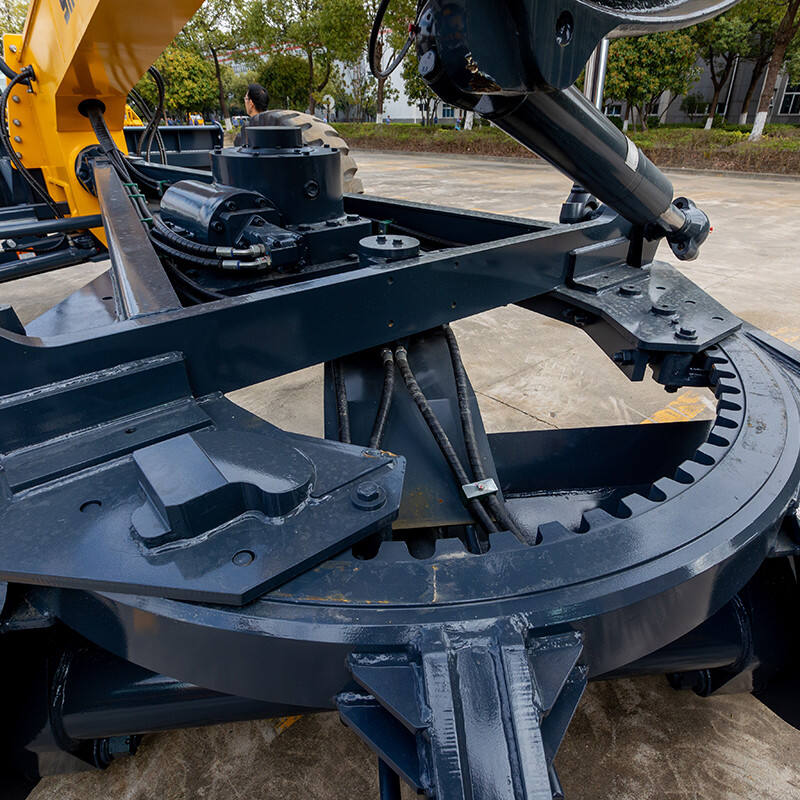

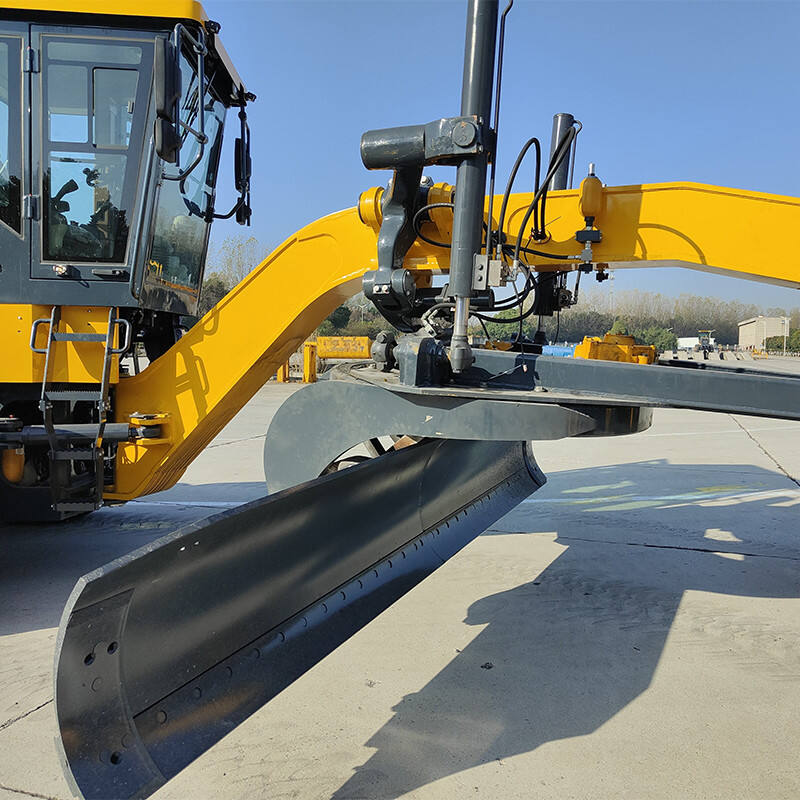

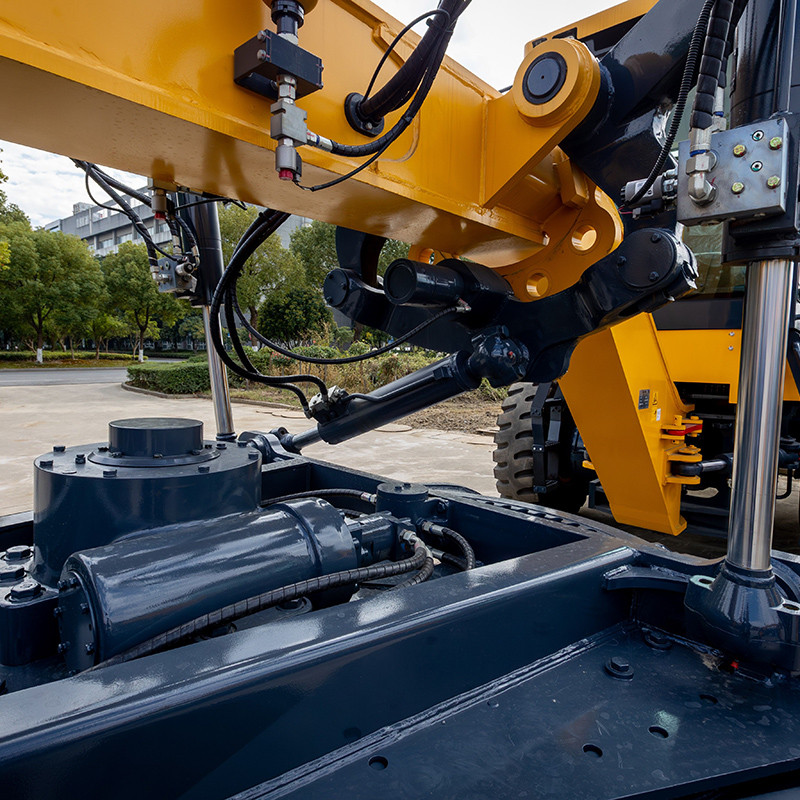

· A wide working range is accomplished through flexible blade suspension system and articulated frame
| Overall Dimension | |||||||||||||
| 1 | Length | 12500mm | |||||||||||
| 2 | Width | 3300mm | |||||||||||
| 3 | Height(To the top of the cab) | 3700mm | |||||||||||
| 4 | Wheel base | 7760mm | |||||||||||
| 5 | Tread | 2650mm | |||||||||||
| 6 | Min. turning radius | 9000mm | |||||||||||
| Main Technical Specification | |||||||||||||
| 1 | Operating weight | 28000kg | |||||||||||

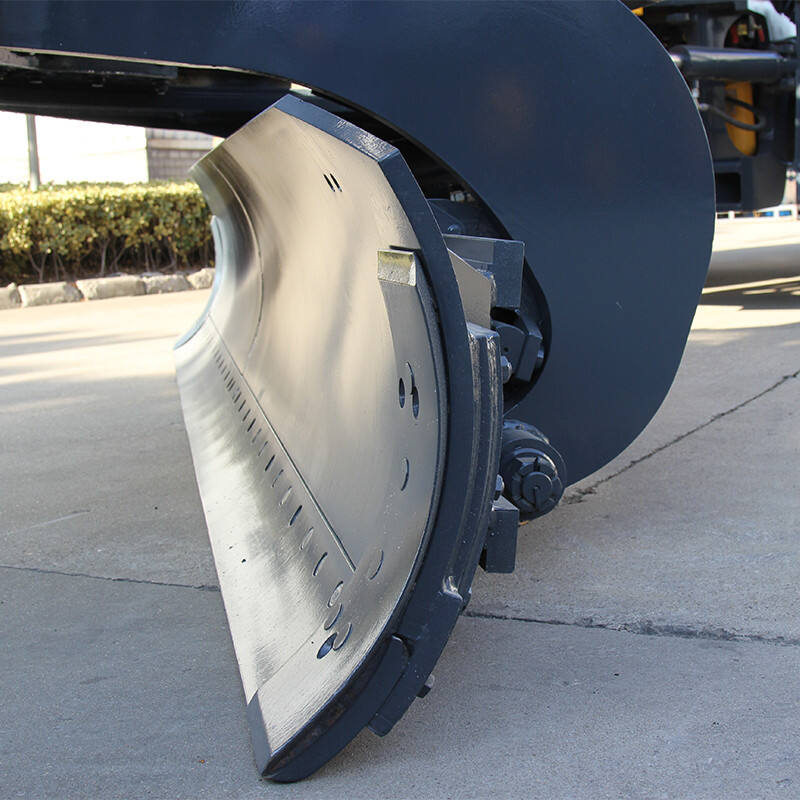

| 2 | Blade length | 4620mm | |||||||||||
| 3 | Blade height | 695mm | |||||||||||
| 4 | Blade width | 20mm | |||||||||||
| 5 | Max. lift above ground | 515mm | |||||||||||
| 6 | Max. grading depth | 735mm | |||||||||||
| 7 | Max. shoulder reach outside rear tire | 2260mm(R)/1950mm(L) | |||||||||||
| 8 | Traveling speed(Km/h),6 forward and 3 reverse | ||||||||||||
| (1) forward | 5.5,8.6,13.3,20.3,29,43 | ||||||||||||
| (2) reverse | 5.5,13.3,29 | ||||||||||||
| Diesel engine | |||||||||||||
| 1 | Model | Cummins QSM11-C330 | |||||||||||
| 2 | Type | EFI,turbocharger, air-to-aircooling; temperaturecontrolindependentcoolingsystem | |||||||||||
| 3 | Rated output | 246(kW) | |||||||||||
| 4 | Rated speed | 2100(r/min) | |||||||||||
| 5 | Max. Torque | 1674(N.m)/(1400r/min) | |||||||||||
| Transmission case | |||||||||||||
| 1 | Model | 6WG260 (ZF technology) | |||||||||||
| 2 | Type | electro-hydraulic controlled power shift single handle operation,automatic transmission | |||||||||||
| 3 | Gear shift position | 6 Forward and 3 reverse gears | |||||||||||
| Axle and Tire | |||||||||||||
| 1 | Max. drawing force | 144kN | |||||||||||
| 2 | Size of tire | 18.00-25-28PR | |||||||||||
| Working Device Hydraulic System | |||||||||||||
| 1 | Model of oil pump | RR074BLS2520-3S1N2A1 | |||||||||||
| 2 | System pressure | 25MPa | |||||||||||
| 3 | Model of distribution valve | Walvoil DRFC22132 DPX100/5Walvoil DRFC22133 DPX100/5 | |||||||||||
| 4 | Model of oil motor | Eaton 604-1113 | |||||||||||
| Steering System | |||||||||||||
| 1 | Type | Fore Tiredeflexion | |||||||||||
| 2 | Model of steering gear | Eaton Xcel45-320 | |||||||||||
| 3 | System pressure | 16MPa | |||||||||||
| Brake System | |||||||||||||
| 1 | Type of traveling brak | Full Hydraulic Wet Brakes | |||||||||||
| 2 | Model of brake pump | HPT2-35/HPT1-20/9 | |||||||||||
| 3 | System pressure | 6.9MPa | |||||||||||
| 4 | Type of parking brake | Hydraulically Operated Disc Brake | |||||||||||
| Oil Capacity | |||||||||||||
| 1 | Fuel(diesel) | 540L | |||||||||||
| 2 | Engine lubricating oil | 28L | |||||||||||
| 3 | Oil for converter and gear box | 35-40L | |||||||||||
| 4 | Oil for hydraulic system | 200L | |||||||||||
| 5 | Oil for driving rear axles | 35L | |||||||||||
| 6 | Tandem box | 2*60L | |||||||||||
