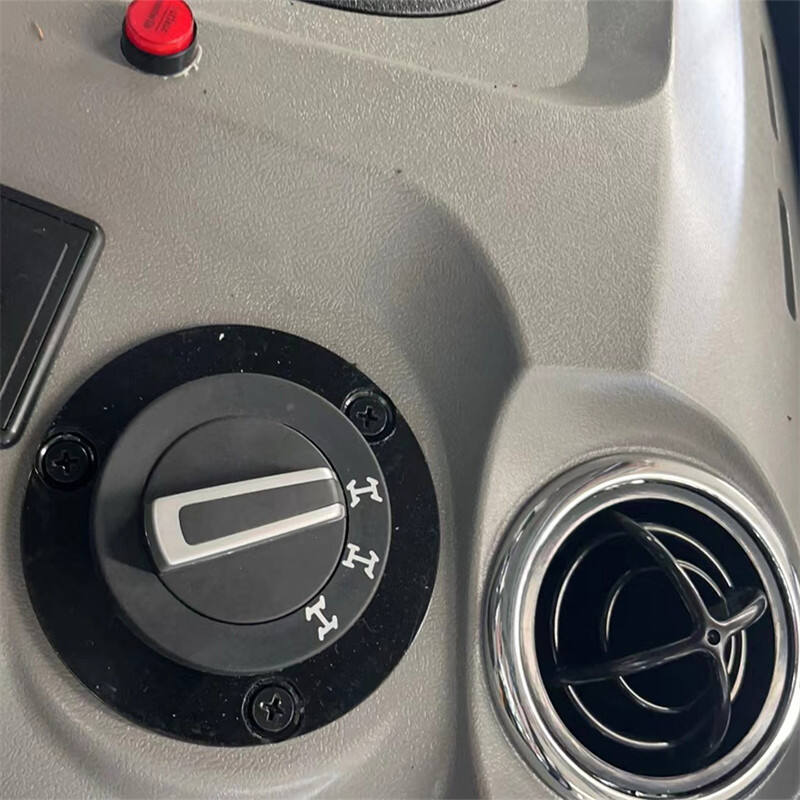

Equipped with a self-developed, high-reliability hydraulic torque converter and gearbox, delivering robust power for the excavator loader. Reinforced engineering axle ensures stable travel. Supports front-wheel steering, four-wheel steering, and crab-walking modes to adapt to diverse work conditions. Large 16.9-28 tires with high ground clearance enhance off-road capability.
Equipped with a self-developed, high-reliability hydraulic torque converter and gearbox, delivering robust power for the excavator loader. Reinforced engineering axle ensures stable travel. Supports front-wheel steering, four-wheel steering, and crab-walking modes to adapt to diverse work conditions. Large 16.9-28 tires with high ground clearance enhance off-road capability.

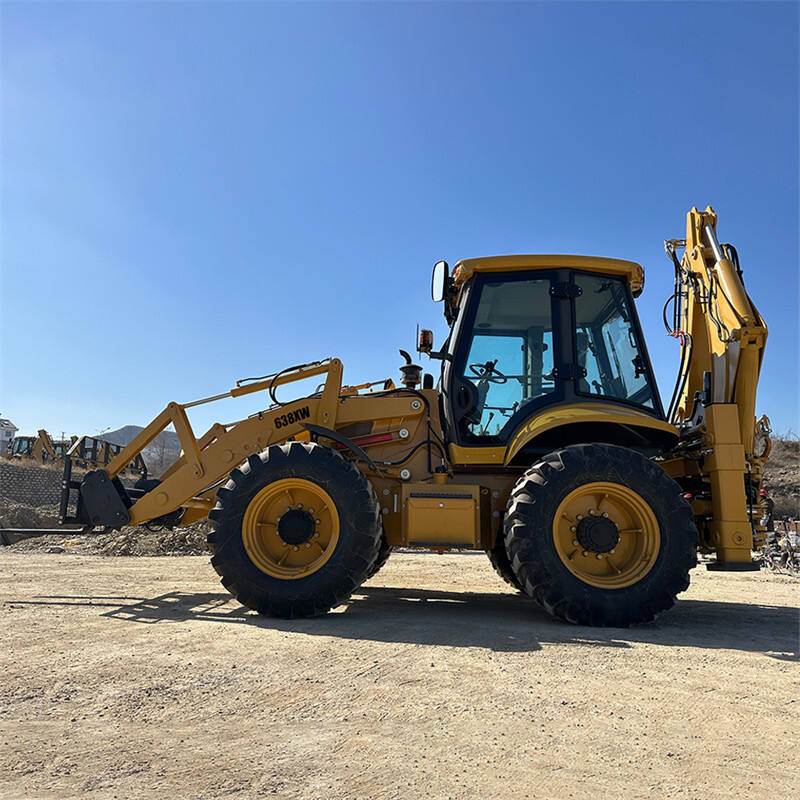

Combining excavator and loader functions into a single machine, it handles multiple construction tasks efficiently. Flexible and ideal for tight spaces, easily managing earthmoving, material handling, and site preparation, increasing productivity by over 30%.

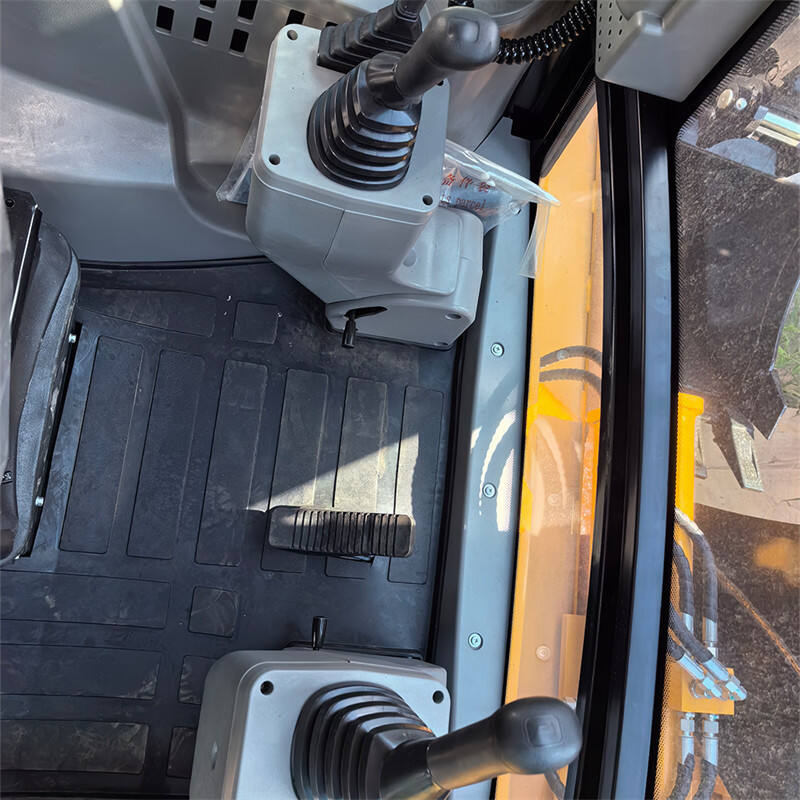

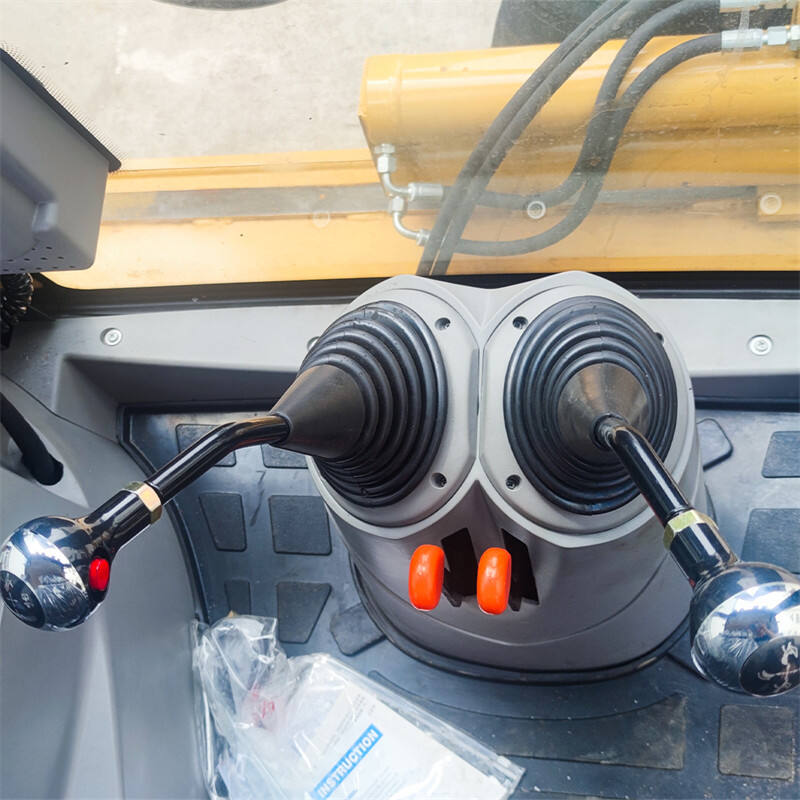

The machine features pilot-controlled hydraulic systems, providing smooth and responsive operation for both digging and loading, enhancing precision and efficiency.

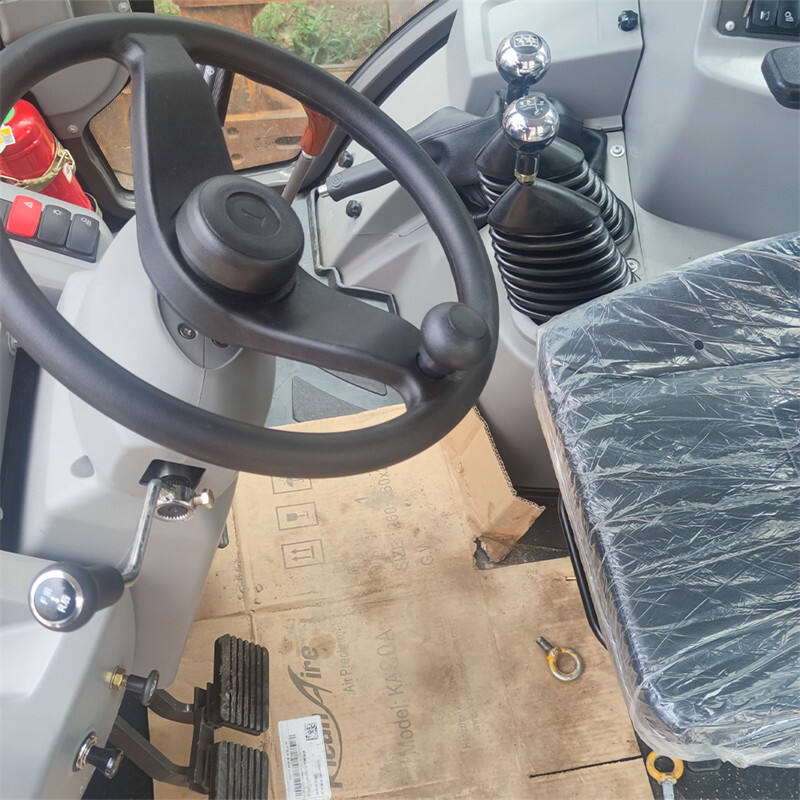

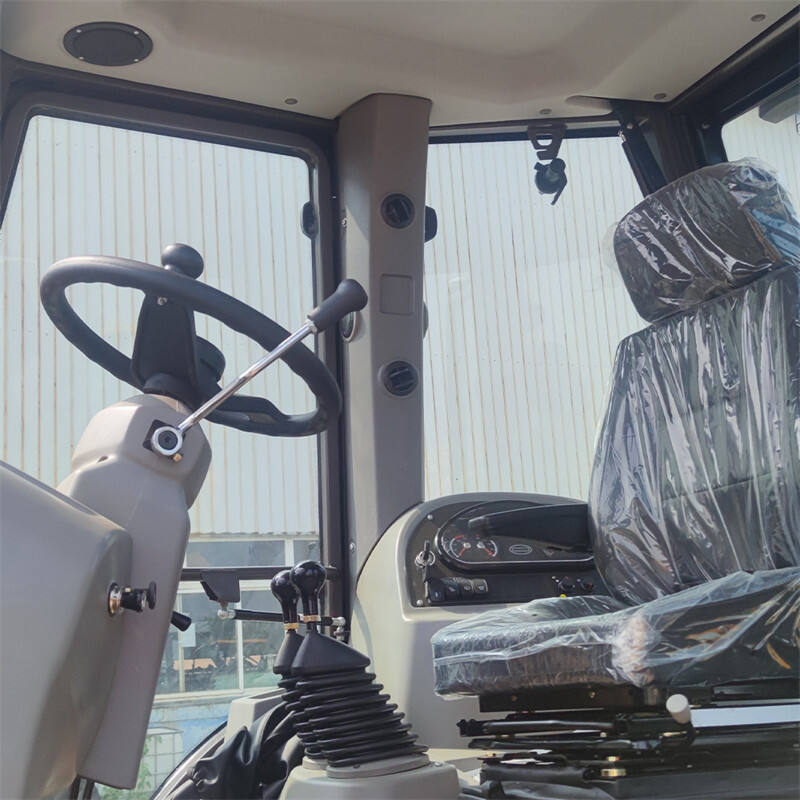

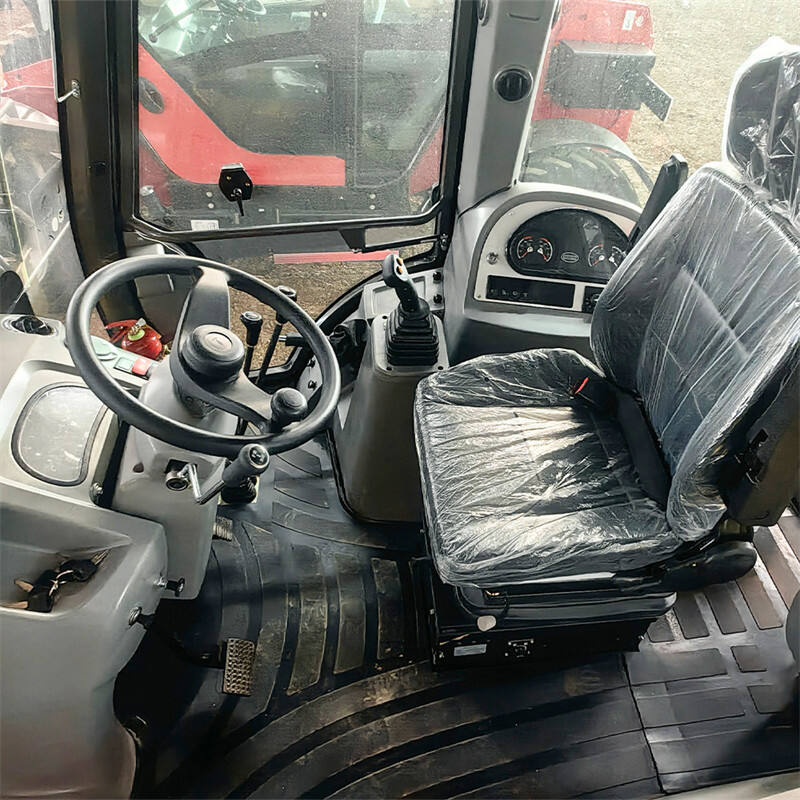

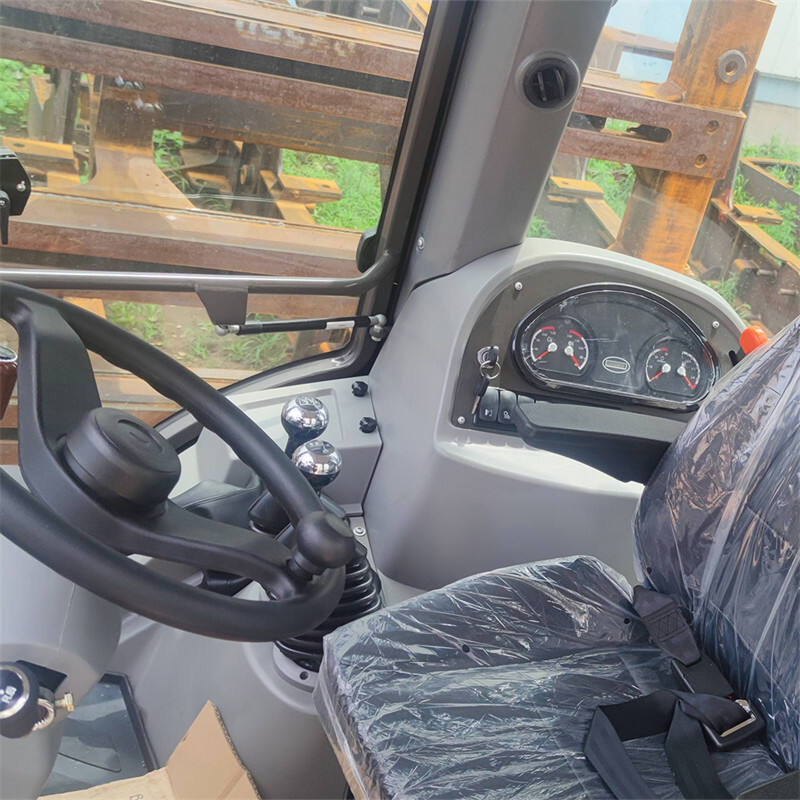

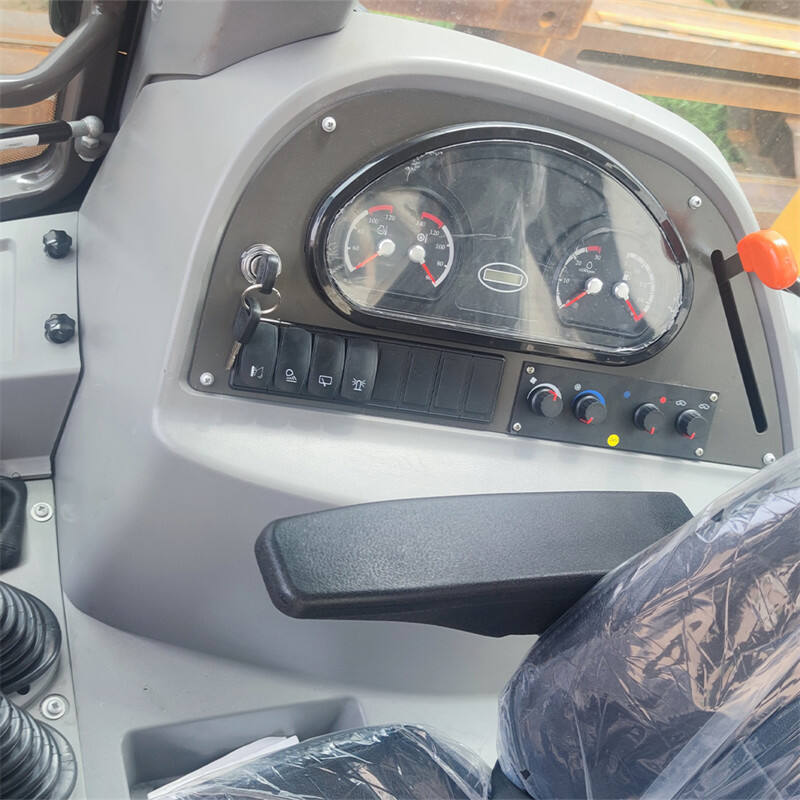

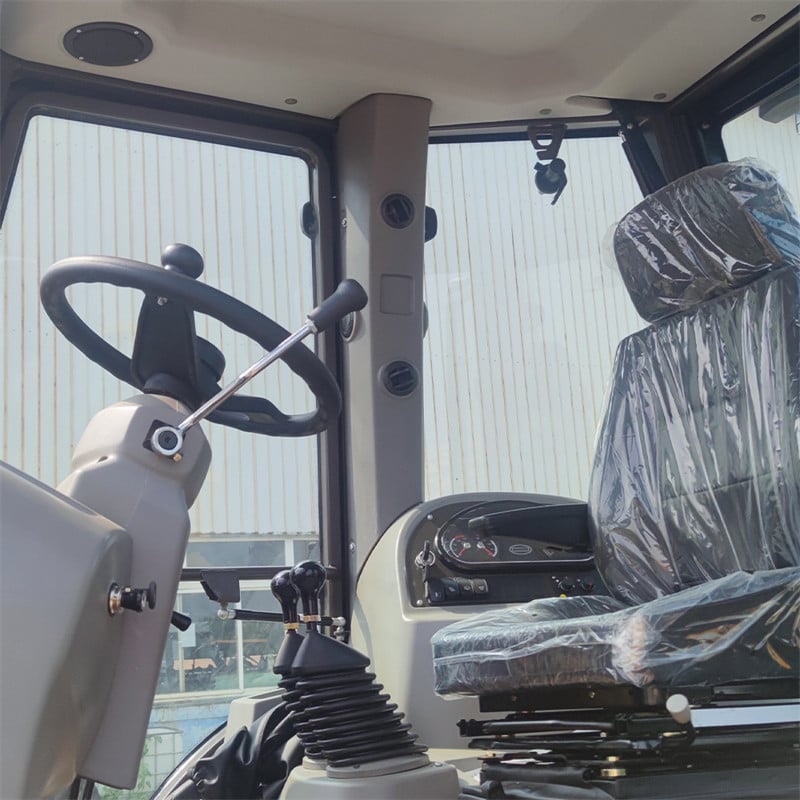

The cab is equipped with a rotating suspension seat and fully tempered glass (FOPS&ROPS), offering wide visibility, superior comfort, and safety for extended operations.
The excavator arm features a full hydraulic lateral slide, allowing quick adjustments and extended working range, saving time and labor while boosting overall productivity.Front flip hood design allows easy maintenance and inspection, reducing downtime and enhancing the machine’s reliability and service life.

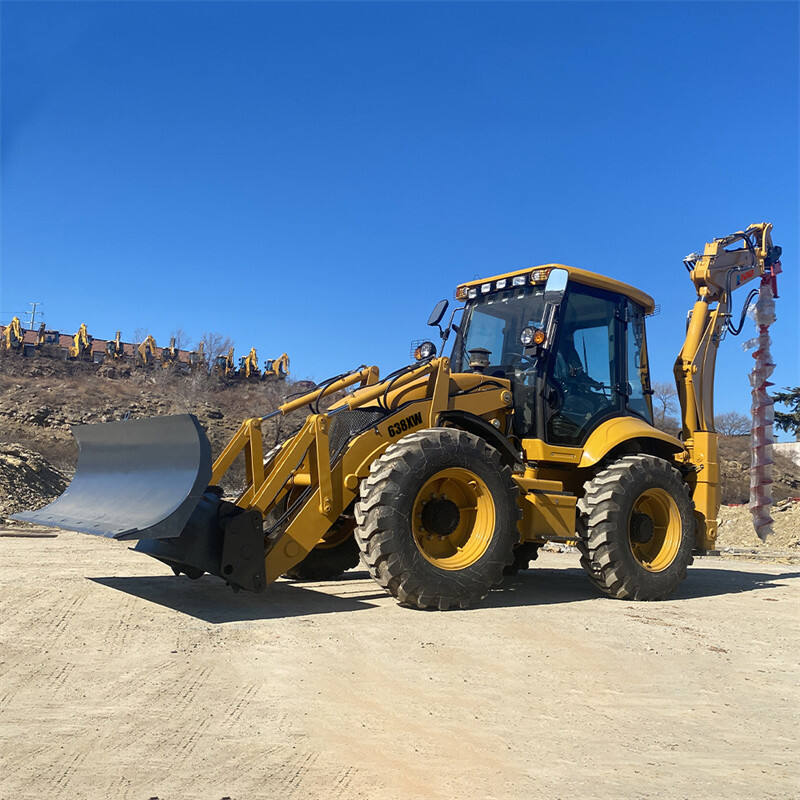

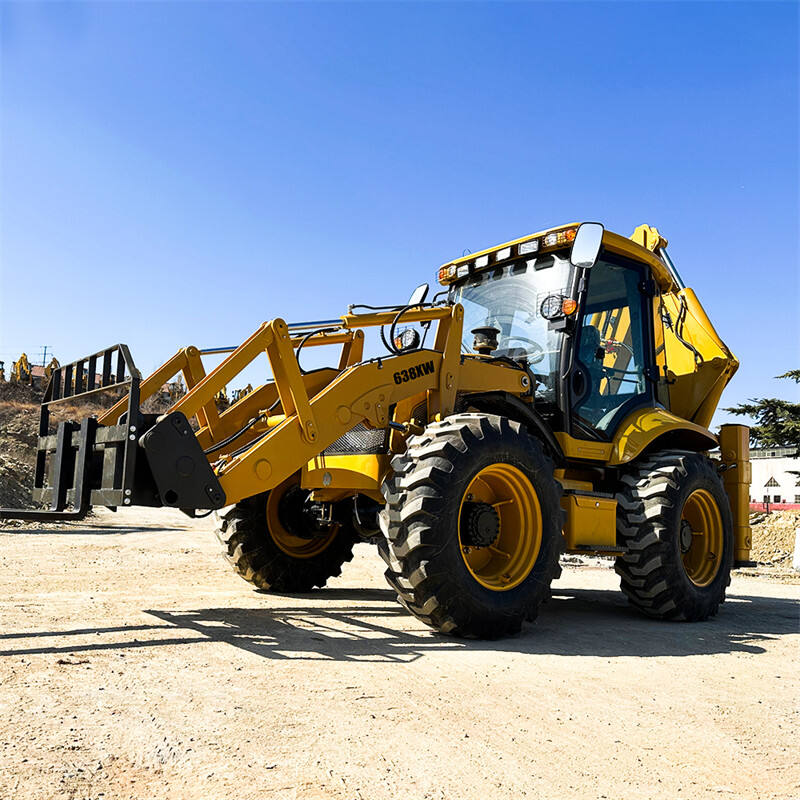

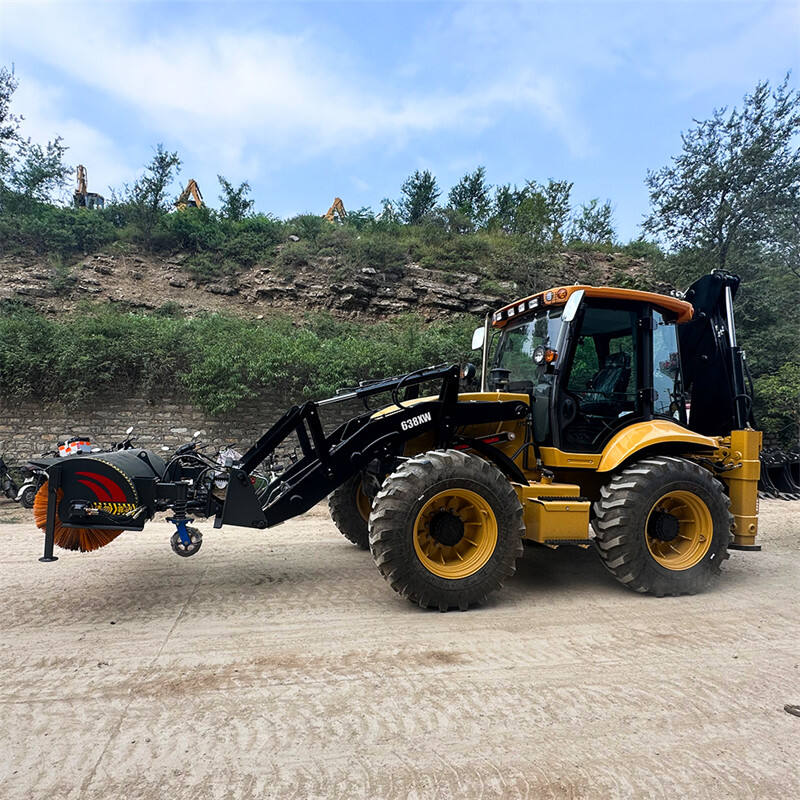

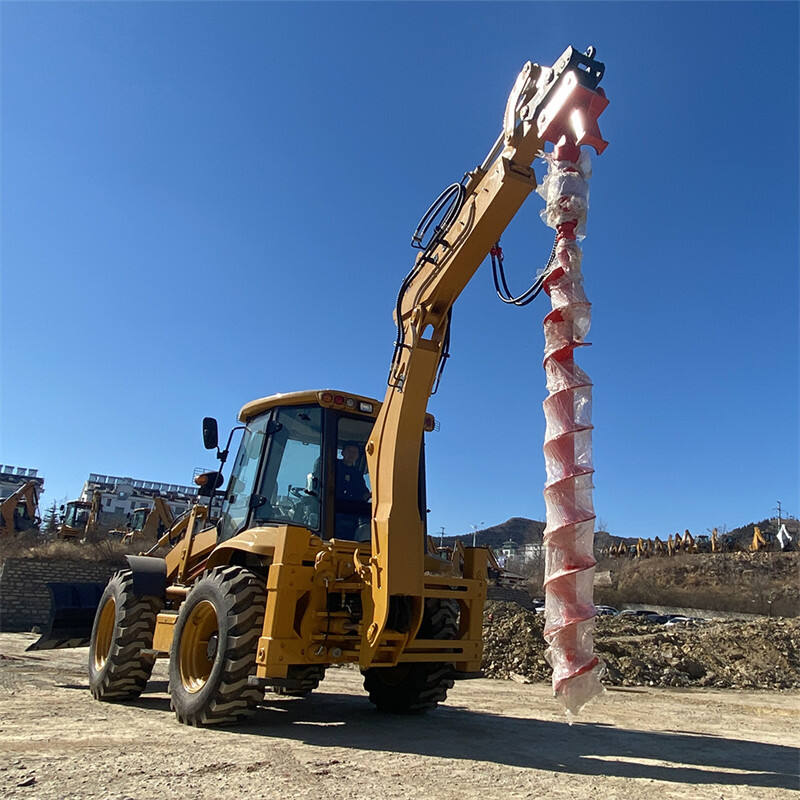

Supports various optional attachments, suitable for municipal, construction, water conservancy, highway, power, landscaping, and more. Capable of handling farmland renovation, pipeline laying, cable installation, landscaping, and other versatile applications.
| Overall Dimension | ||||||||
| 1 | Length(with bucket on ground) | 6450±80mm | ||||||
| 2 | Overall width(at stabilizer ) | 2490±10mm | ||||||
| 3 | Load Bucket width | 2490±10mm | ||||||
| 4 | Height(To the top of the cab) | 3120±10mm | ||||||
| 5 | Height(To the top of the digging pole) | 3602 ±20mm | ||||||
| 6 | Wheel base | 2335±10 mm | ||||||
| 7 | Back wheel Tread | 2139 ±10mm | ||||||
| l Main Loading Technical Specification | ||||||||
| 1 | Rated load | 2500KG | ||||||
| 2 | Operating weight | 9120kg | ||||||
| 3 | Rated bucket capacity | 1.2m³ | ||||||
| 4 | Max. dump clearance | 3050±50 mm | ||||||
| 5 | Dump reach | 870±20 mm | ||||||
| 6 | Outside of bucket | 6420±100mm | ||||||
| Main Digging Technical Specification | ||||||||
| backhoe I | backhoe II | |||||||
| 1 | Rated digging bucket capacity | 0.3m³ | 0.3m³ | |||||
| 2 | Max. digging depth | 3820±20 mm | 3223±20 mm | |||||
| 3 | Max. digging radius | 5345±20mm | 5940±20mm | |||||
| 4 | Max.Load height | 4014±20mm | 3981±20mm | |||||
| 5 | Maximum digging depth (telescopic boom) | 4970±20 mm | 4180±20 mm | |||||
| 6 | Maximum loading height (telescopic boom) | 4923±20mm | 4726±20mm | |||||
| Diesel engine | ||||||||
| 1 | Model | YC4A105Z-T20 | ||||||
| 2 | Type | Water cooling | ||||||
| 3 | Rated output | 75 (kW) | ||||||
| 4 | Total exhaust of cylinder | 4.8(L) | ||||||
| 5 | Rated speed | 2200(r/min) | ||||||
| 6 | Max. Torque | 400(N.M) | ||||||
| Transmission System | ||||||||
| 1 | Torque Converter | Model | YJ320 | |||||
| Cooling type | Pressure oil circulating | |||||||
| 2 | Transmission case | Model | 15 | |||||
| Type | Synchromesh mechanical shift | |||||||
| 3 | Axle and Tire | Model | WZL100 | |||||
| 4 | Gear shift position | 4 F, 4 R | ||||||
| 5 | (F/R)km/h |
F1,5km/h; F2,10km/h; F3,18km/h; F4,38km/h; R1,5km/h; R2,10km/h; R3,18km/h; R4,38km/h; |
||||||
| 6 | Size of tire | 16.9-28 | ||||||
| The hydraulic system | ||||||||
| 1 | Working pump discharge | 63ml/r | ||||||
| 2 | Working pump pressure | 20Mpa | ||||||
| 3 | Type of steering gear | BZZ-500 | ||||||
| Excavating equipment (crushing hammer) | ||||||||
| 1 | Drill rod diameter mm | 68-70 | ||||||
| 2 | Pressure of work Mpa | 11-14 | ||||||
| 3 | The impact frequency | 500-900 | ||||||
| 4 | Flow range L/min | 25-45 | ||||||
| 5 | The kinetic energy KN | 49 | ||||||
| Oil Capacity | ||||||||
| 1 | The hydraulic oil tank | 125 | ||||||
| 2 | Diesel fuel tank | 125 | ||||||
