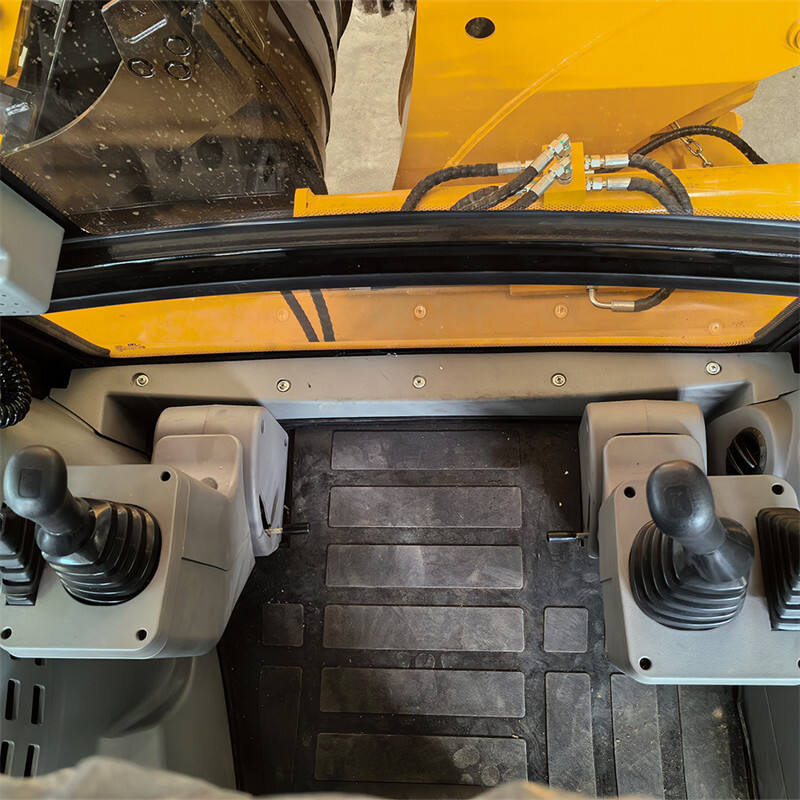

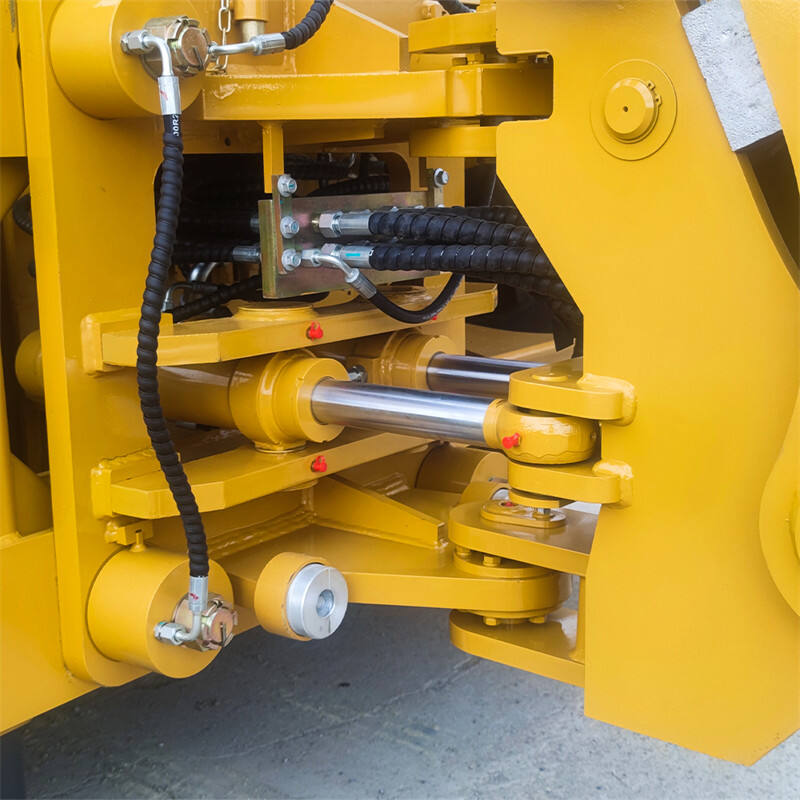

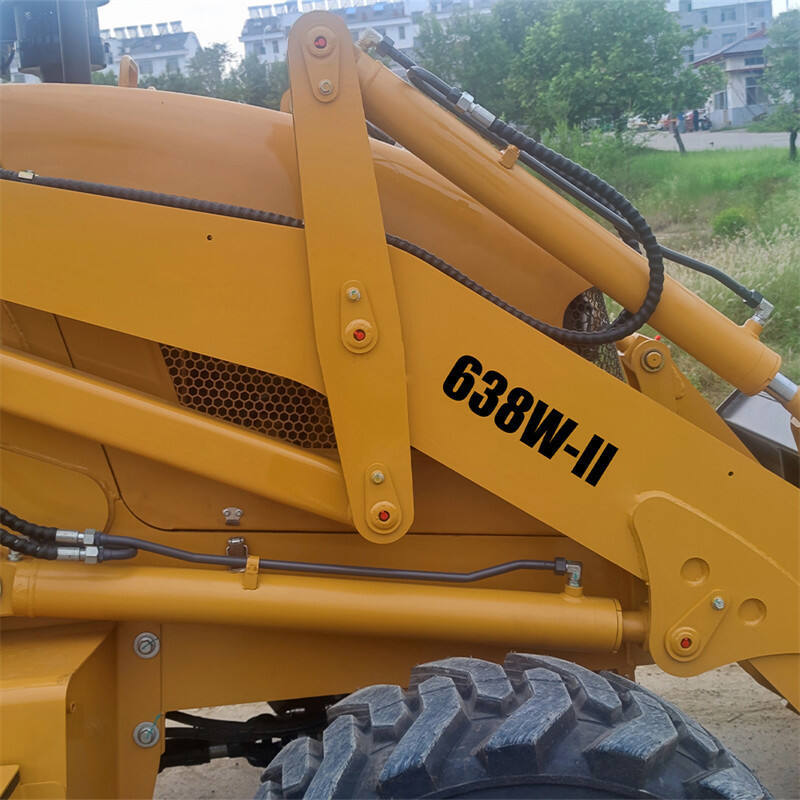

Perfect for tight job sites and complex terrains, this machine handles every task with ease. Flexible central articulated frame and full hydraulic control ensure smooth digging and loading operations.
Perfect for tight job sites and complex terrains, this machine handles every task with ease. Flexible central articulated frame and full hydraulic control ensure smooth digging and loading operations.

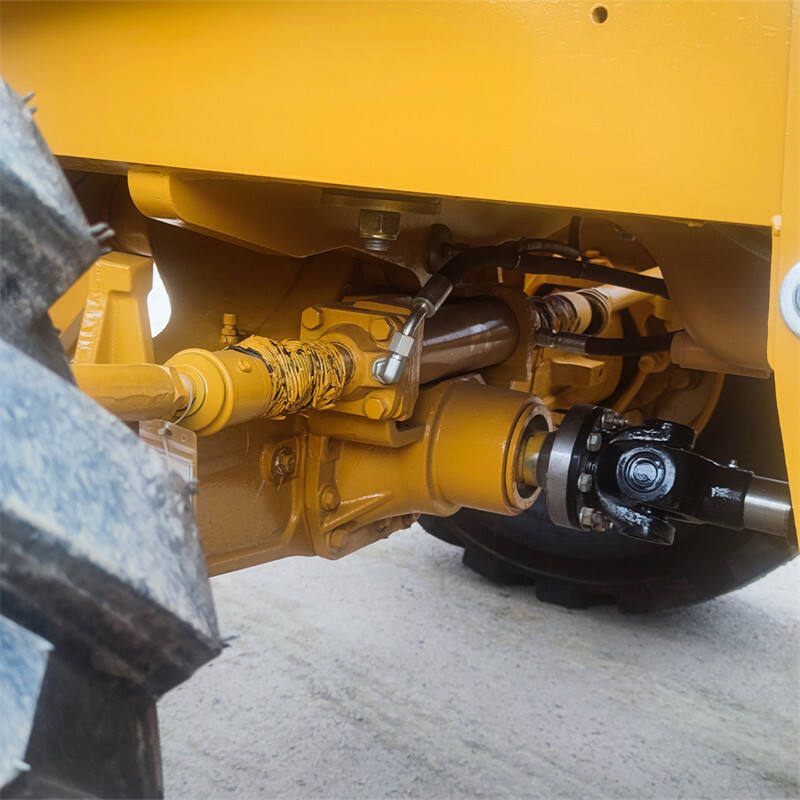

Equipped with a high-reliability hydraulic torque converter and gearbox, combined with reinforced engineering axle, delivering powerful performance and stable operation for maximum efficiency.

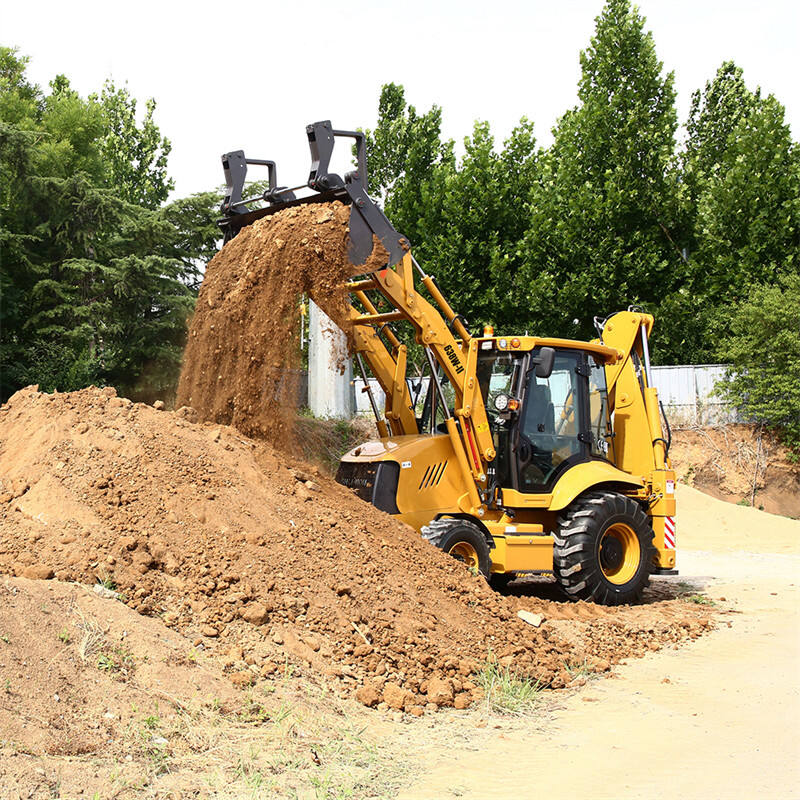

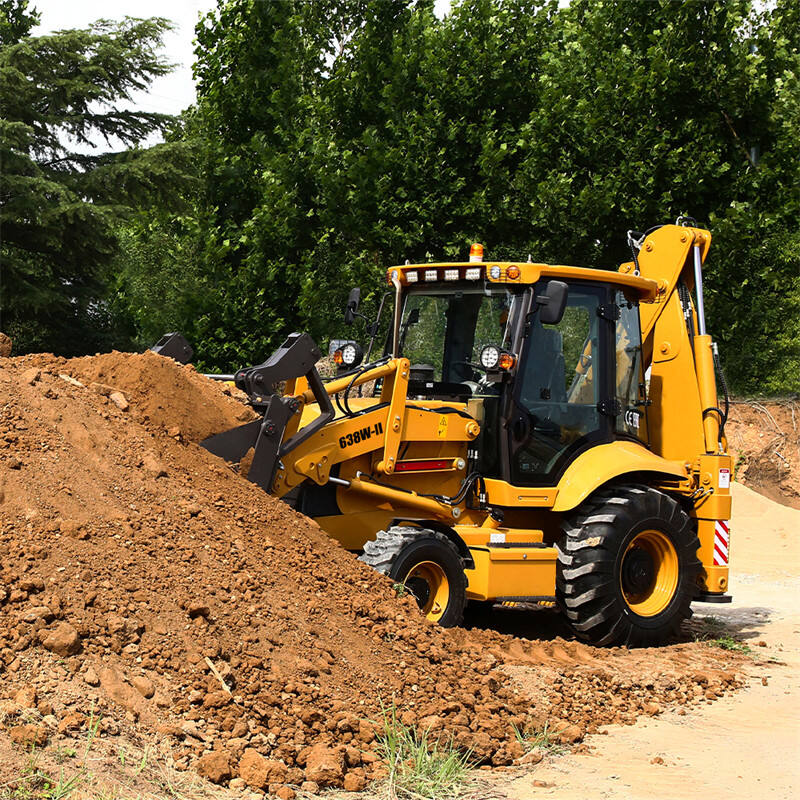

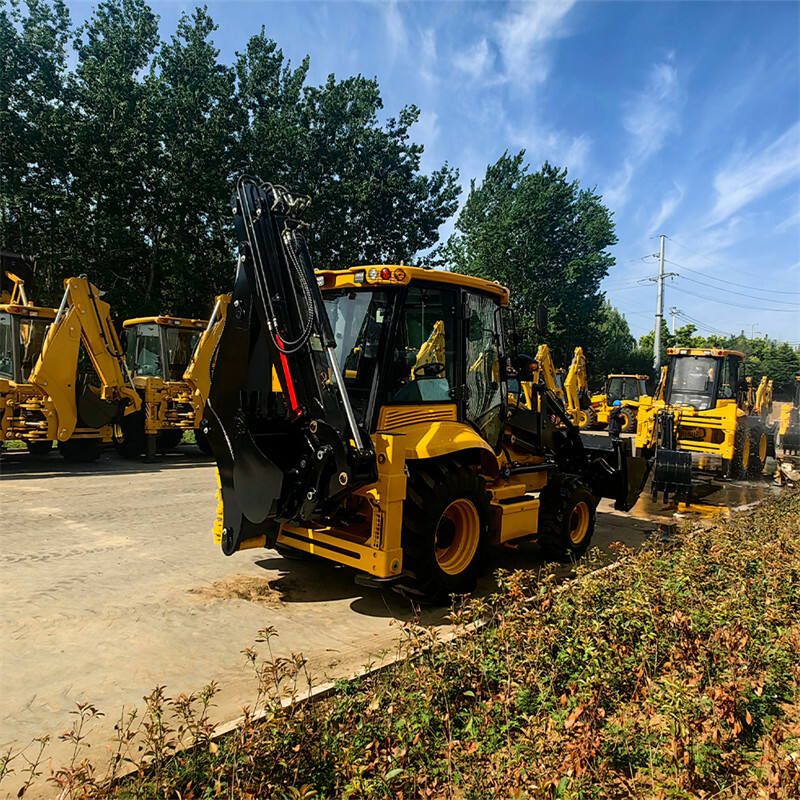

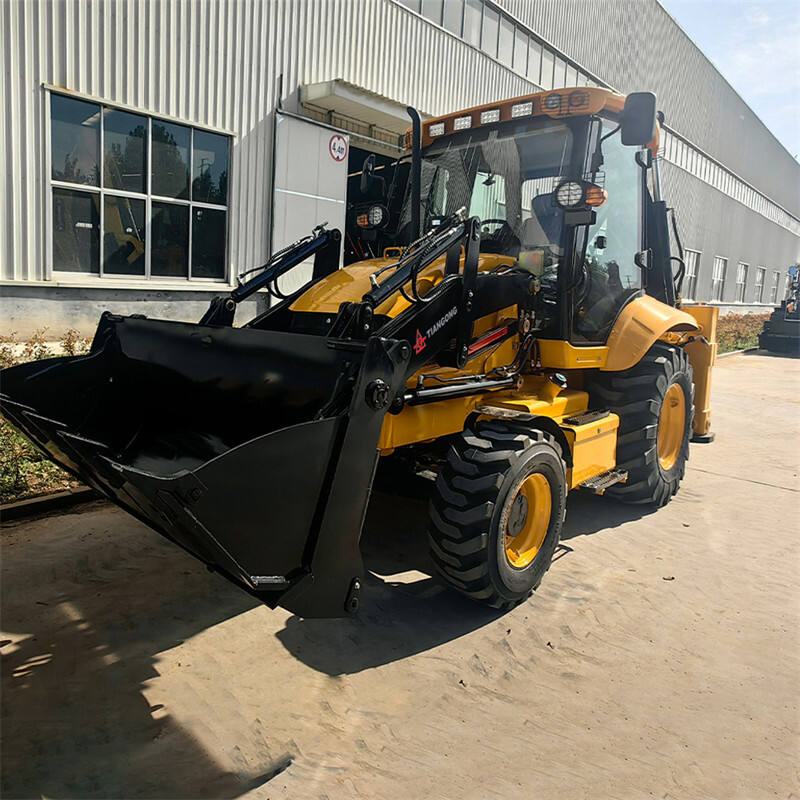

Combining excavator and loader functions in a single unit, this multi-functional machine handles diverse tasks efficiently, offering flexibility and significantly higher productivity.

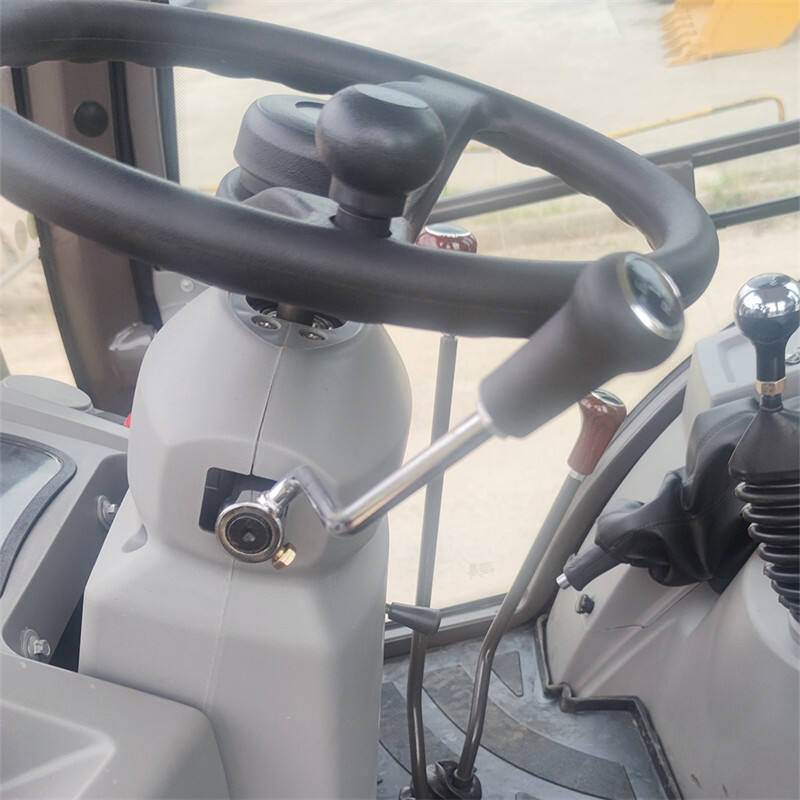

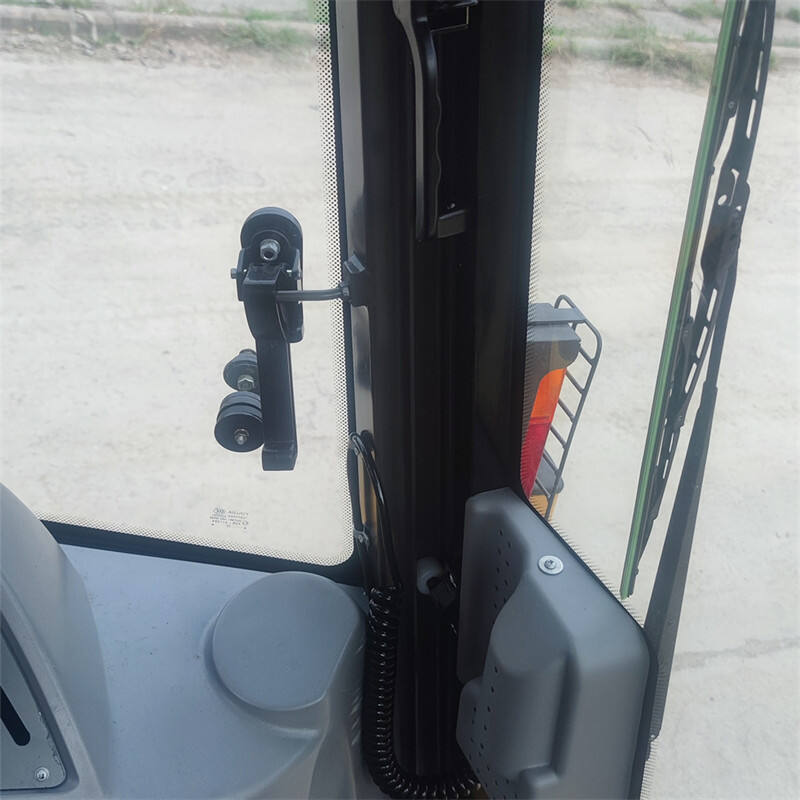

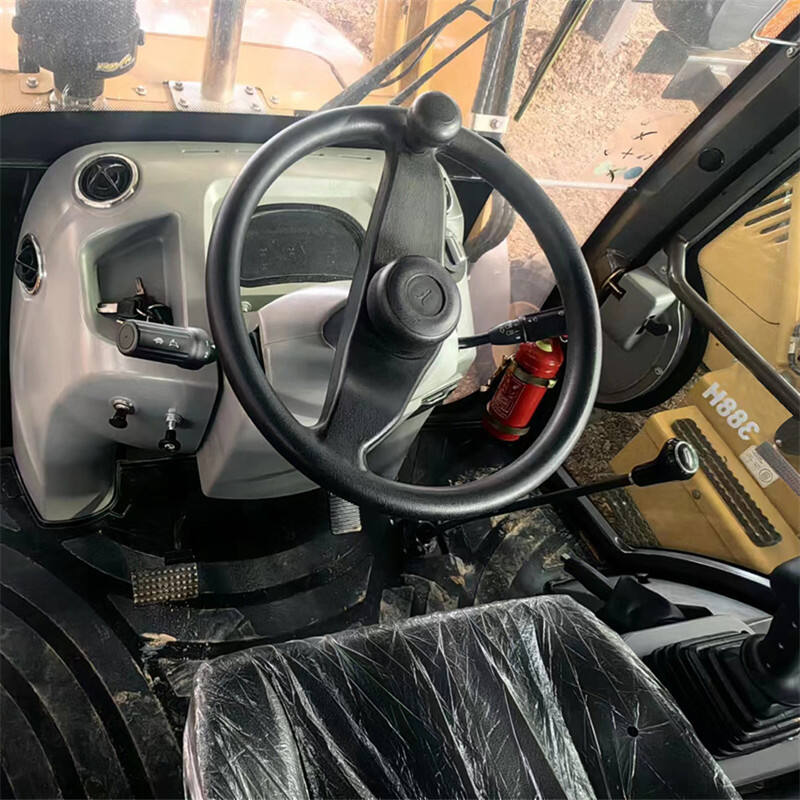

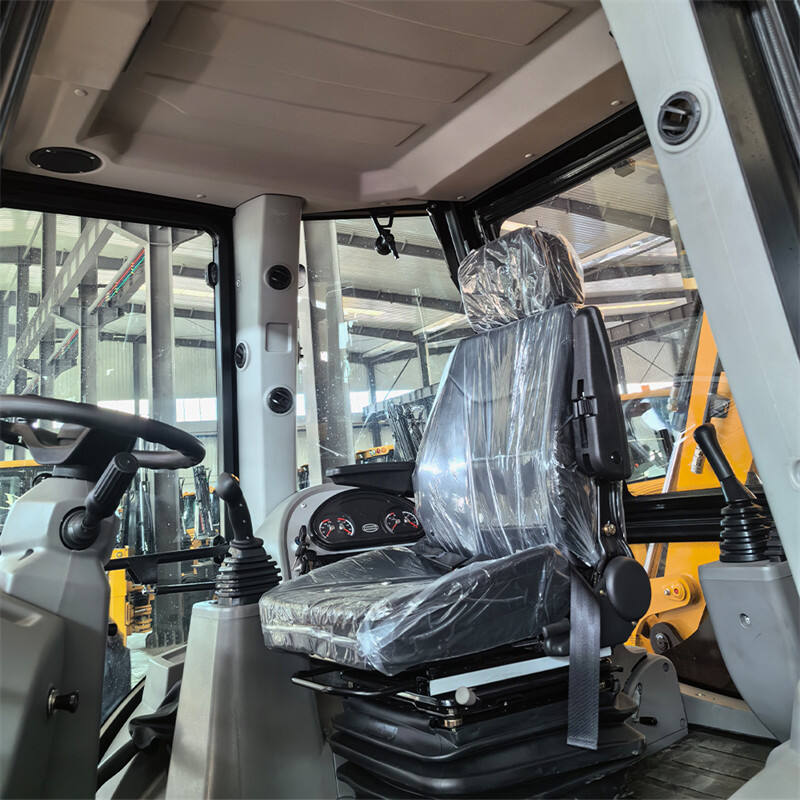

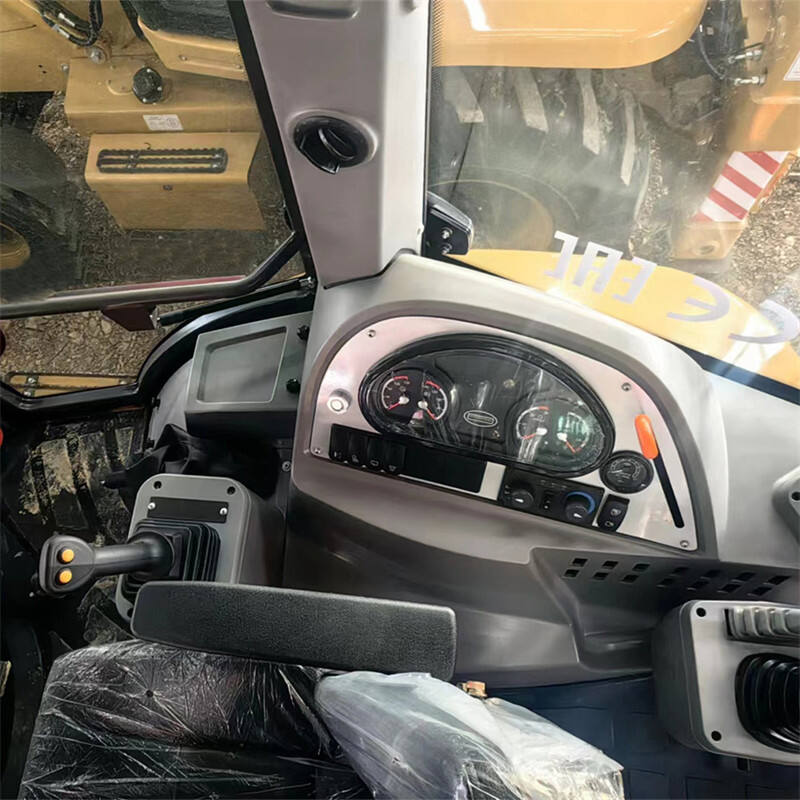

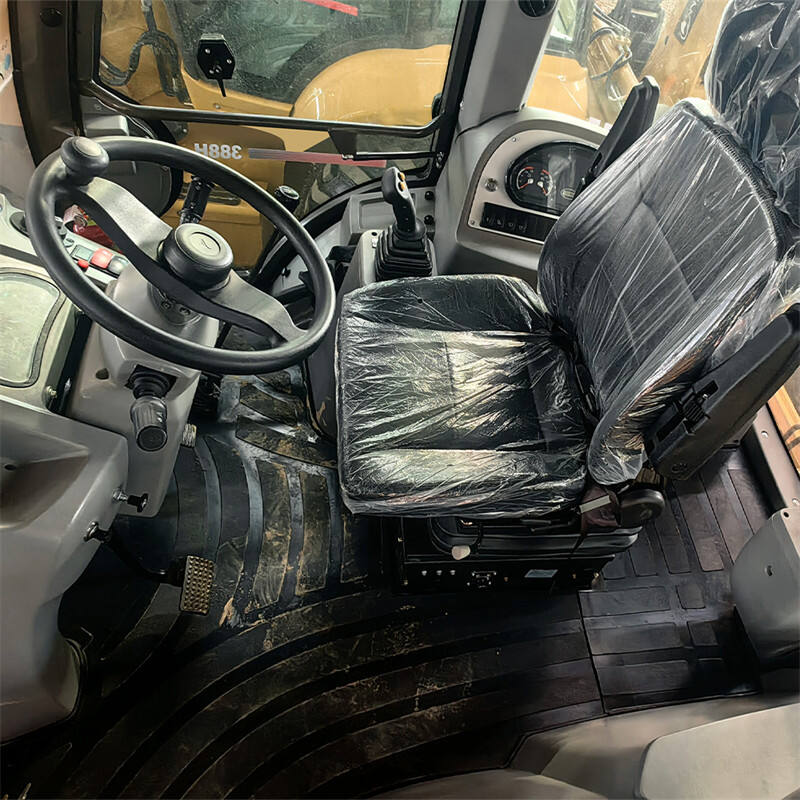

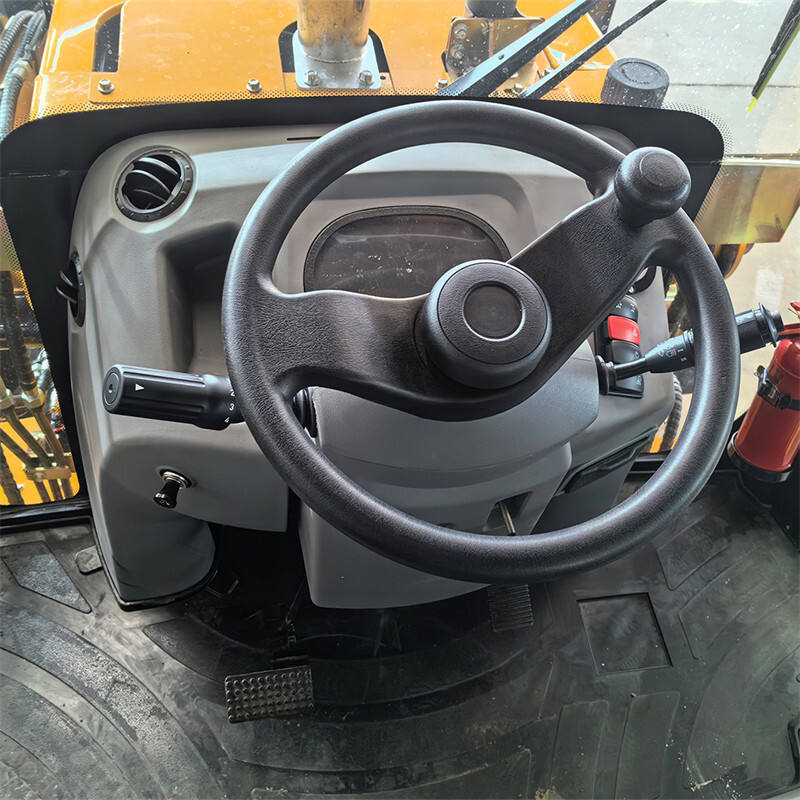

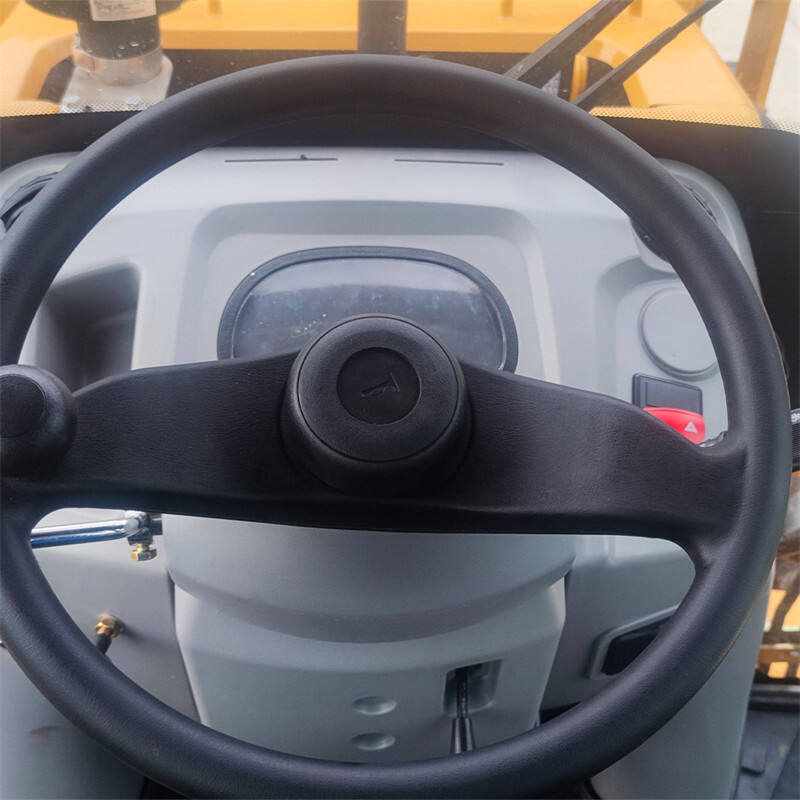

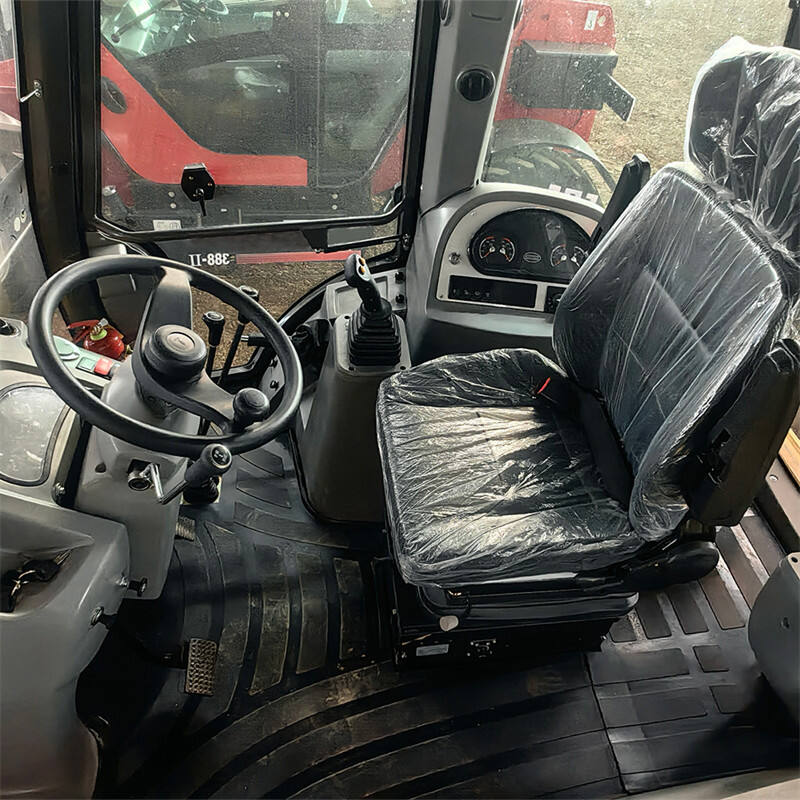

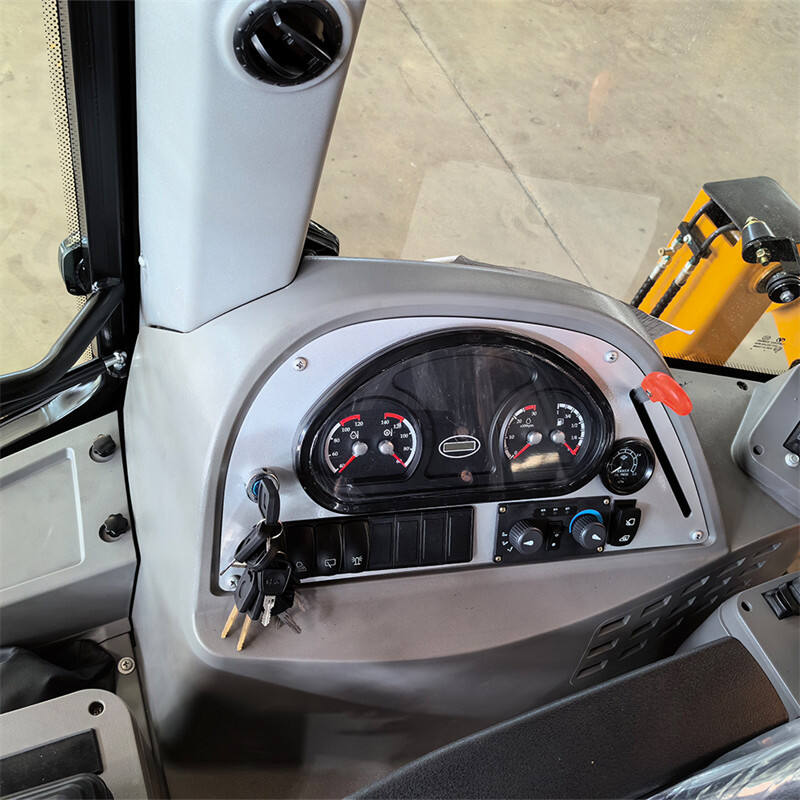

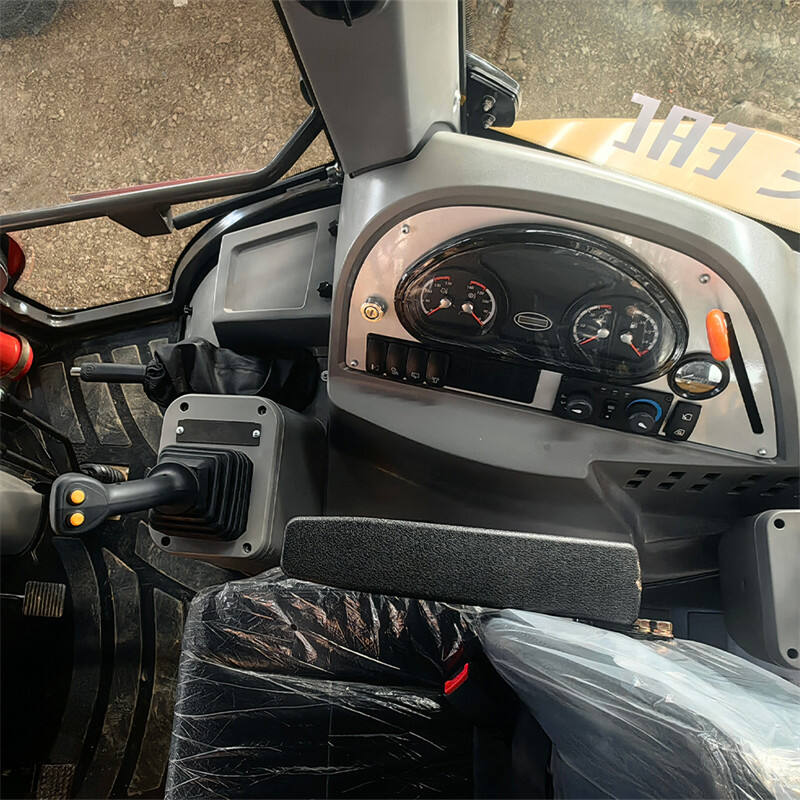

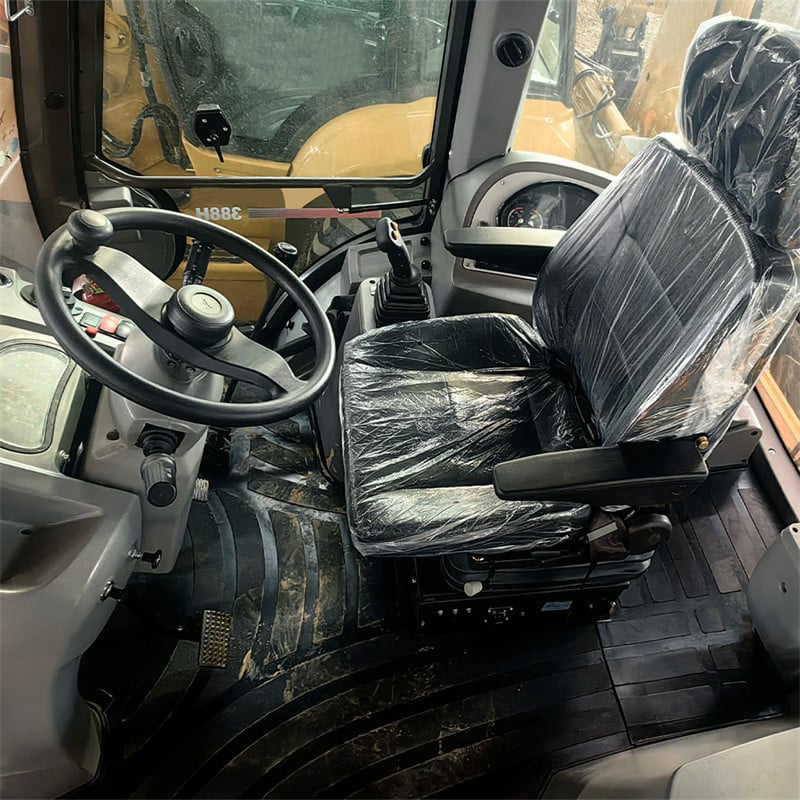

Rotating suspension seat and fully steel-molded glass cab provide wide visibility and long-lasting comfort, helping operators stay efficient throughout long shifts.
| Overall Operating Weight | 8200KG |
| Transport Dimension | |
| mm L*W*H | 6120×2340×3600mm |
| cab to ground mm | 2900mm |
| Wheel base | 2248mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.0m3 |
| Breakout Force | 38KN |
| Loading Lifting Capacity | 2500KG |
| Bucket Dumping Height | 2742mm |
| Bucket Dumping Distance | 925mm |
| Digging Depth | 52mm |
| Backhoe Capacity | 0.3 m3 |
| Max. Digging Depth | 3967 /3424mm |
| Swing Angle of Excavator Grab | 190o |
| Max. Pulling Force | 39KN |
| Engine | |
| Model | YC4A105Z-T20 |
| Type | In Line Direct injection Four-Stroke and Injection Combustion Chamber |
| Cylinder-Inside Diameter*Stroke | 4-108×132 |
| Rated Power | 75KW |
| Rated Speed | 2200r/min |
| Min. Fuel Consumption | ≤230g/km.h |
| Max.Torque | ≥400N.M |
| Displacement | 4.837L |
| Steering System | |
| Model of Steering Device | BZZ5-250 |
| Steering Angle | ±36 o |
| Min. turning radius | 6581mm |
| Pressure of the system | 20Mpa |
| Axle | |
| Manufacturer | Feicheng |
| Final Reducer | Single Stage Final Reducer |
| Rated Loader of Axle | 8/18.5t |
| Transmission System | |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| Max. Efficiency | 84.4% |

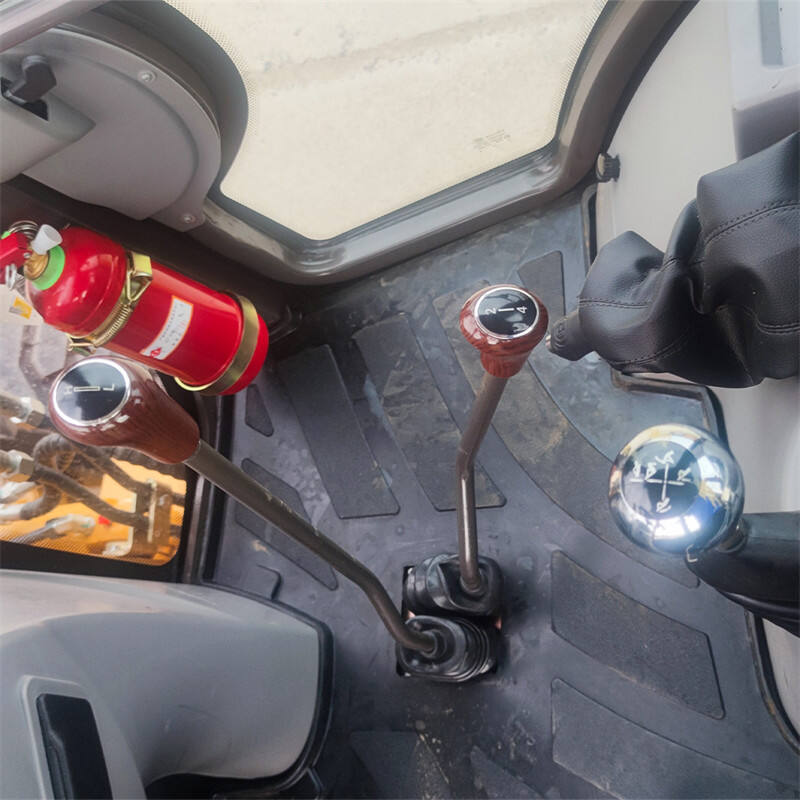

| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Oil Pressure of Clutch | 1373Kpa—1569 Kpa |
| Gears | Four forward, four backward |
| Max.Speed | 38Km/h |

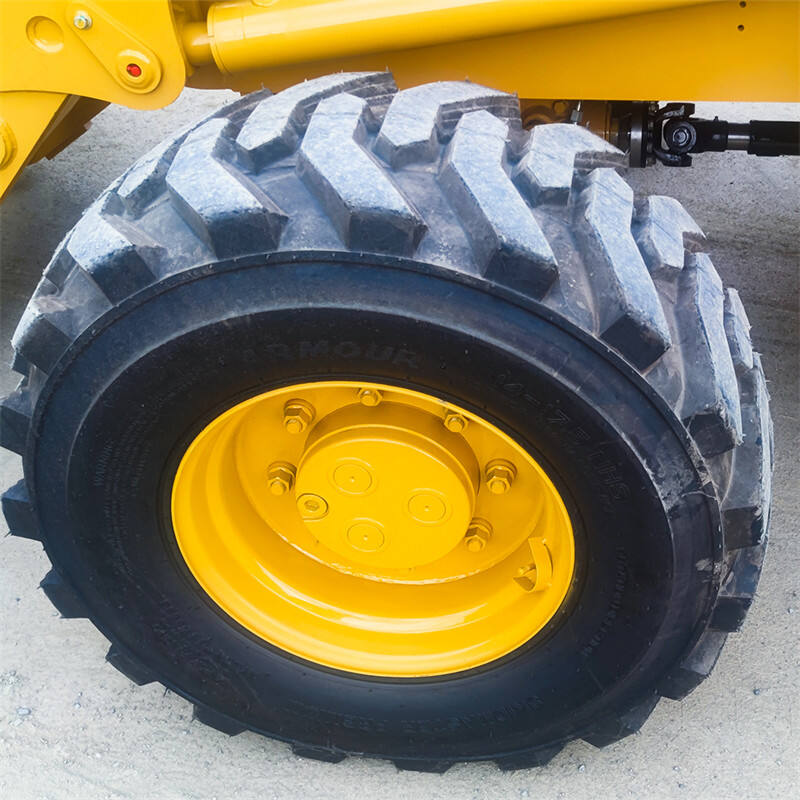

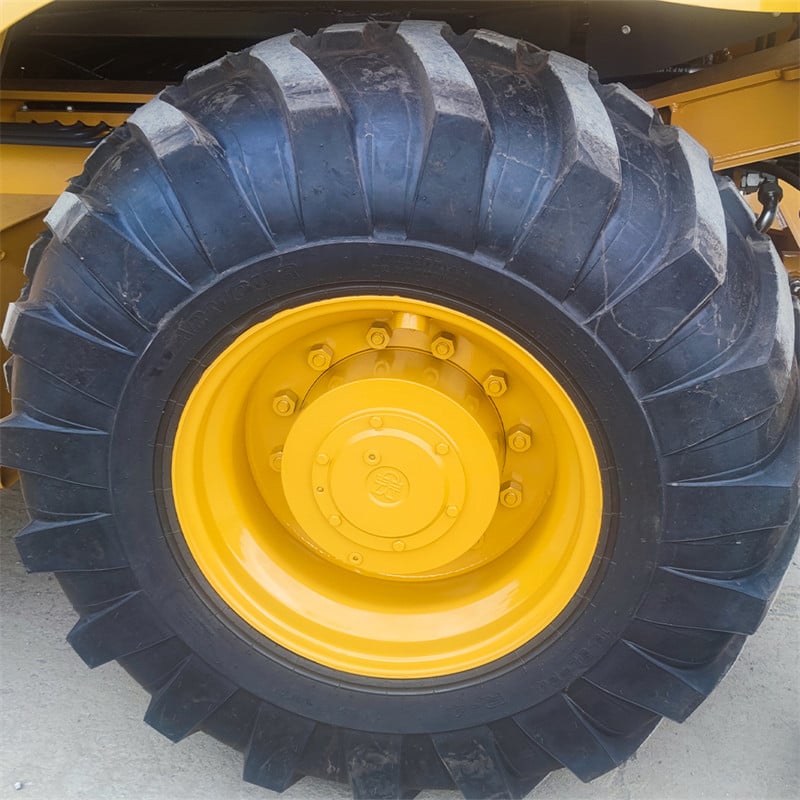

| Tyre | |
| Model | 14-17.5/19.5L-24 |
| Pressure of Front wheel | 0.4Mpa |
| Pressure of Back Wheel | 0.3Mpa |
| Brake System | |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake | |
| Service Brake | Air Over Oil Caliper Brake |
| External Type | |
| Self-regulation | |
| Self-balance | |

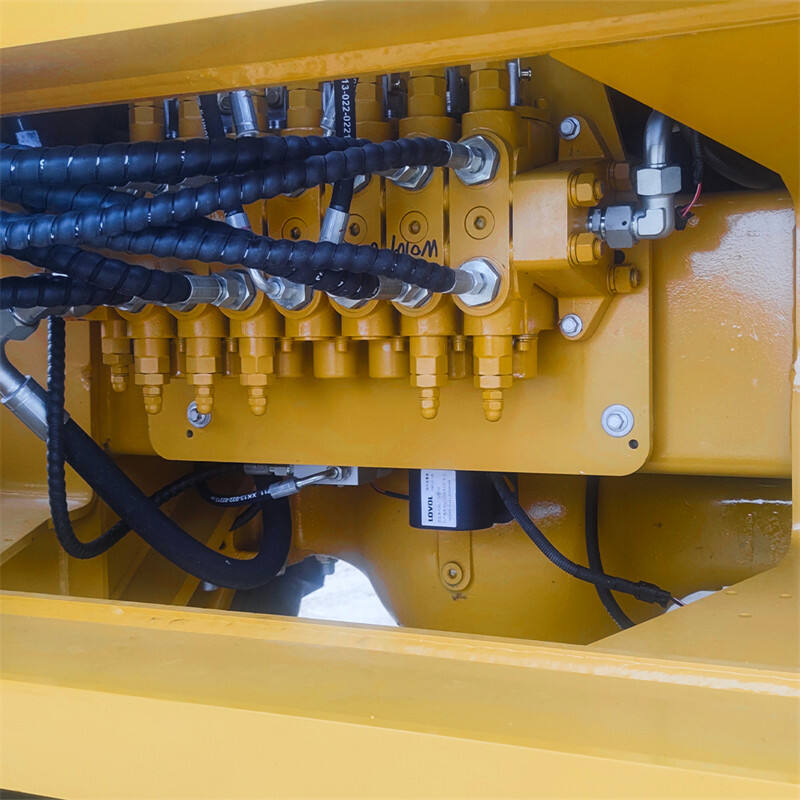

| Hydraulic System | |
| Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 44KN |
| Bucket Lifting Time | 6．8S |
| Bucket Lowering Time | 3.1S |
| Bucket Discharge Time | 2.0S |
