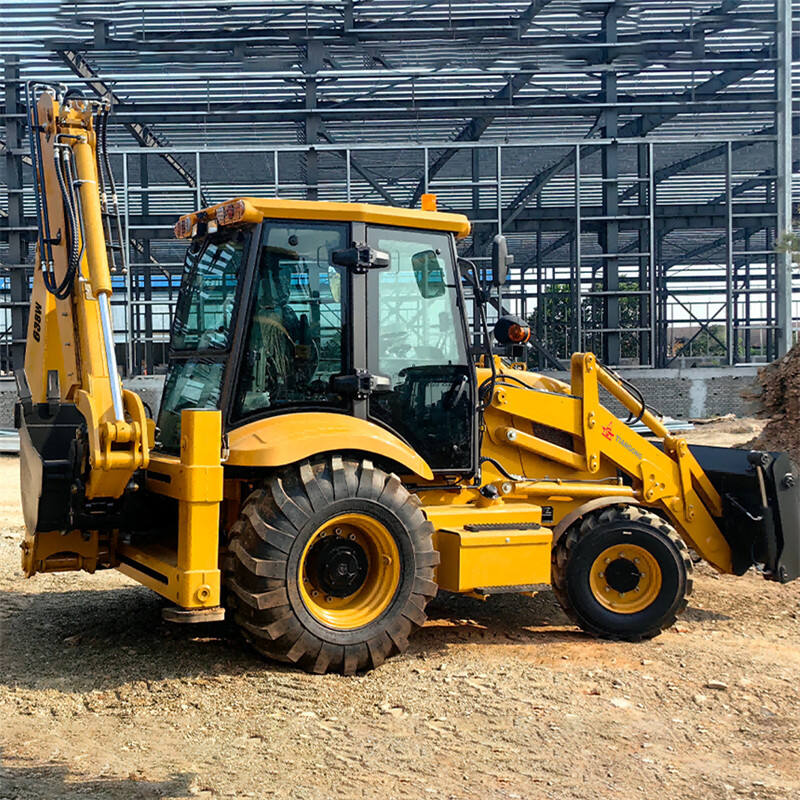

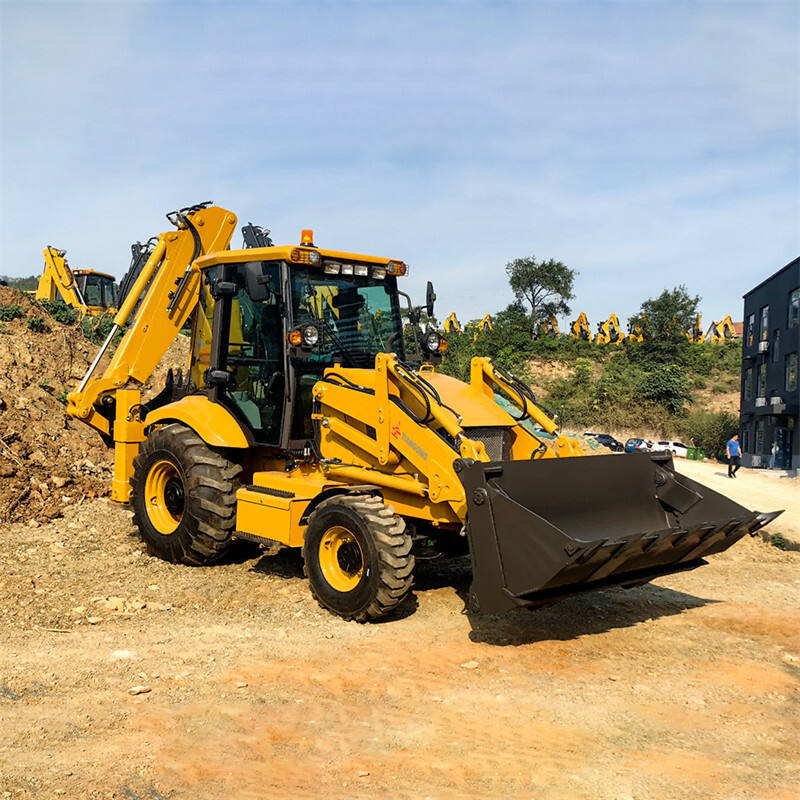

This "two-in-one" machine combines excavator and loader functions in a single unit. It can handle both digging and loading tasks with ease, making it ideal for narrow job sites. Flexible operation increases work efficiency by over 30% compared to traditional machines.
This "two-in-one" machine combines excavator and loader functions in a single unit. It can handle both digging and loading tasks with ease, making it ideal for narrow job sites. Flexible operation increases work efficiency by over 30% compared to traditional machines.
Both digging and loading functions adopt advanced hydraulic pilot control, ensuring smooth, flexible, and reliable operation—maximizing the efficiency of this multi-functional machine.
The excavation device features lateral sliding, extending the working range and handling complex tasks efficiently.
The cab is equipped with a rotating suspension seat and fully steel-molded glass, offering wide visibility and long-term comfort. Reinforced engineering axle and high-reliability hydraulic torque converter ensure smooth travel and safe operation.
With a wide range of optional attachments, this machine can handle multiple construction tasks across municipal, construction, water conservancy, highway, power supply, and landscaping sectors—covering pipeline laying, landscaping, cable installation, and more.
| Overall Operating Weight | 8200KG |
| Transport Dimension | |
| mm L*W*H | 6120×2410×3763 |
| cab to ground mm | 2900mm |
| Wheel base | 2248mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.0m3 |
| Breakout Force | 38KN |
| Loading Lifting Capacity | 2500KG |
| Bucket Dumping Height | 2742mm |
| Bucket Dumping Distance | 925mm |
| Digging Depth | 52mm |
| Backhoe Capacity | 0.3 m3 |
| Max. Digging Depth | 3967 /3424mm |
| Swing Angle of Excavator Grab | 190o |
| Max. Pulling Force | 39KN |
| Engine | |
| Model | YCD4M22T-105 |
| Type | In Line Direct injection Four-Stroke and Injection Combustion Chamber |
| Cylinder-Inside Diameter*Stroke | 4 |
| Rated Power | 77.3KW |
| Rated Speed | |
| Min. Fuel Consumption | |
| Max.Torque | 330(N.M)/1600-1700 r/min |
| Displacement | |
| Steering System | |
| Model of Steering Device | BZZ5-250 |
| Steering Angle | ±36 o |
| Min. turning radius | 6581mm |
| Pressure of the system | 20Mpa |
| Axle | |
| Manufacturer | 肥城Feicheng |
| Final Reducer | 一级轮边减速Single Stage Final Reducer |
| Rated Loader of Axle | 8/18.5t |
| Transmission System | |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| Max. Efficiency | 84.4% |
| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Oil Pressure of Clutch | 1373Kpa—1569 Kpa |
| Gears | Four forward, four backward |
| Max.Speed | 38Km/h |
| Tyre | |
| Model | 14-17.5/19.5L-24 |
| Pressure of Front wheel | 0.4Mpa |
| Pressure of Back Wheel | 0.3Mpa |
| Brake System | |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake | |
| Service Brake | Air Over Oil Caliper Brake |
| External Type | |
| Self-regulation | |
| Self-balance | |
| Hydraulic System | |
| Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 44KN |
| Bucket Lifting Time | 6．8S |
| Bucket Lowering Time | 3.1S |
| Bucket Discharge Time | 2.0S |
| Main Transmission Type | Double Reduction |
